PU-12H Portable UHF Wireless Microphone System

PU-12H Portable UHF Wireless Microphone System

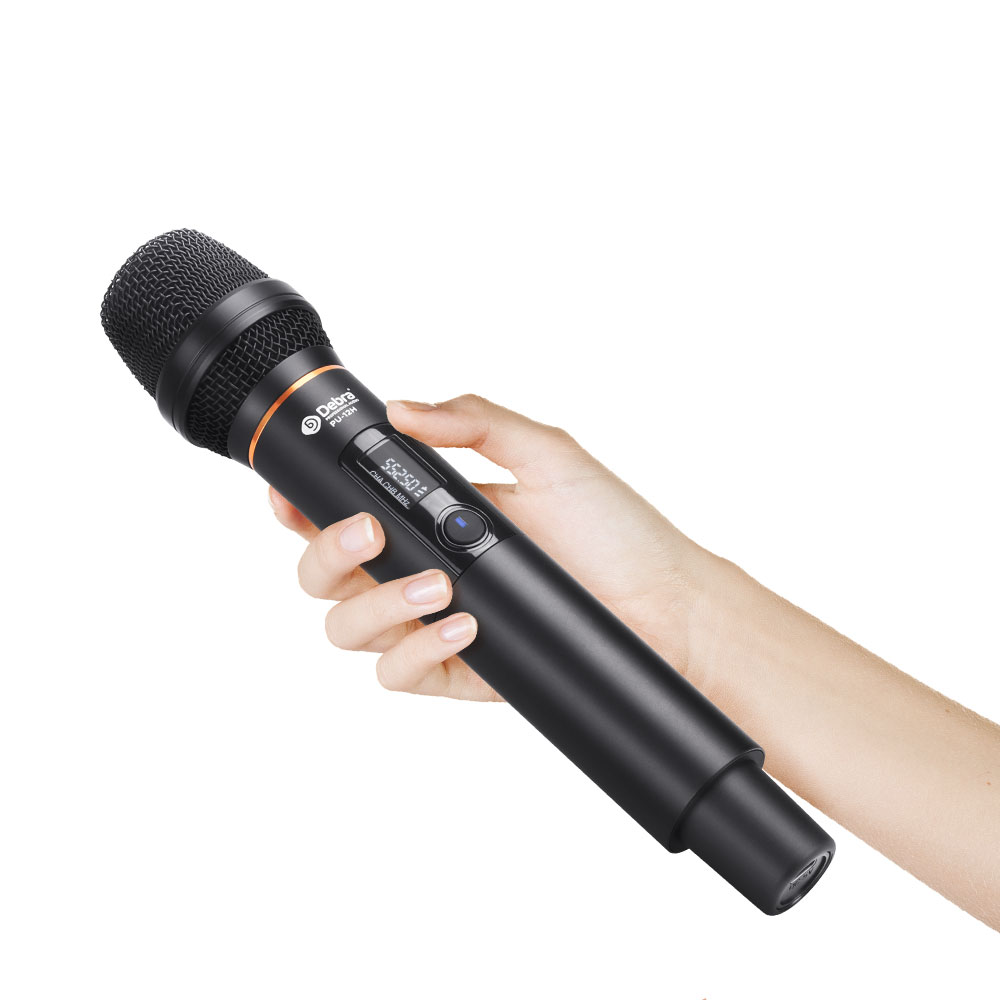

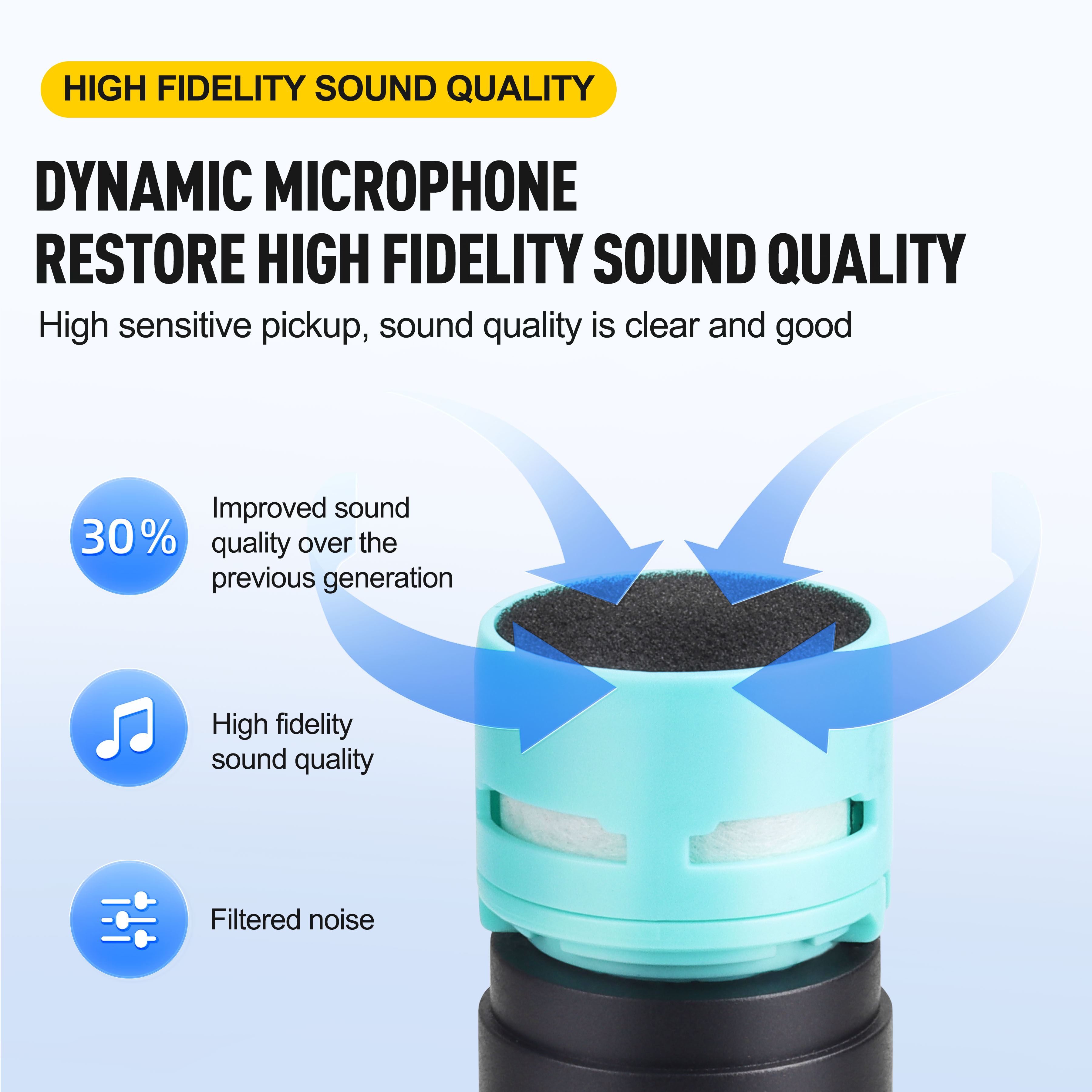

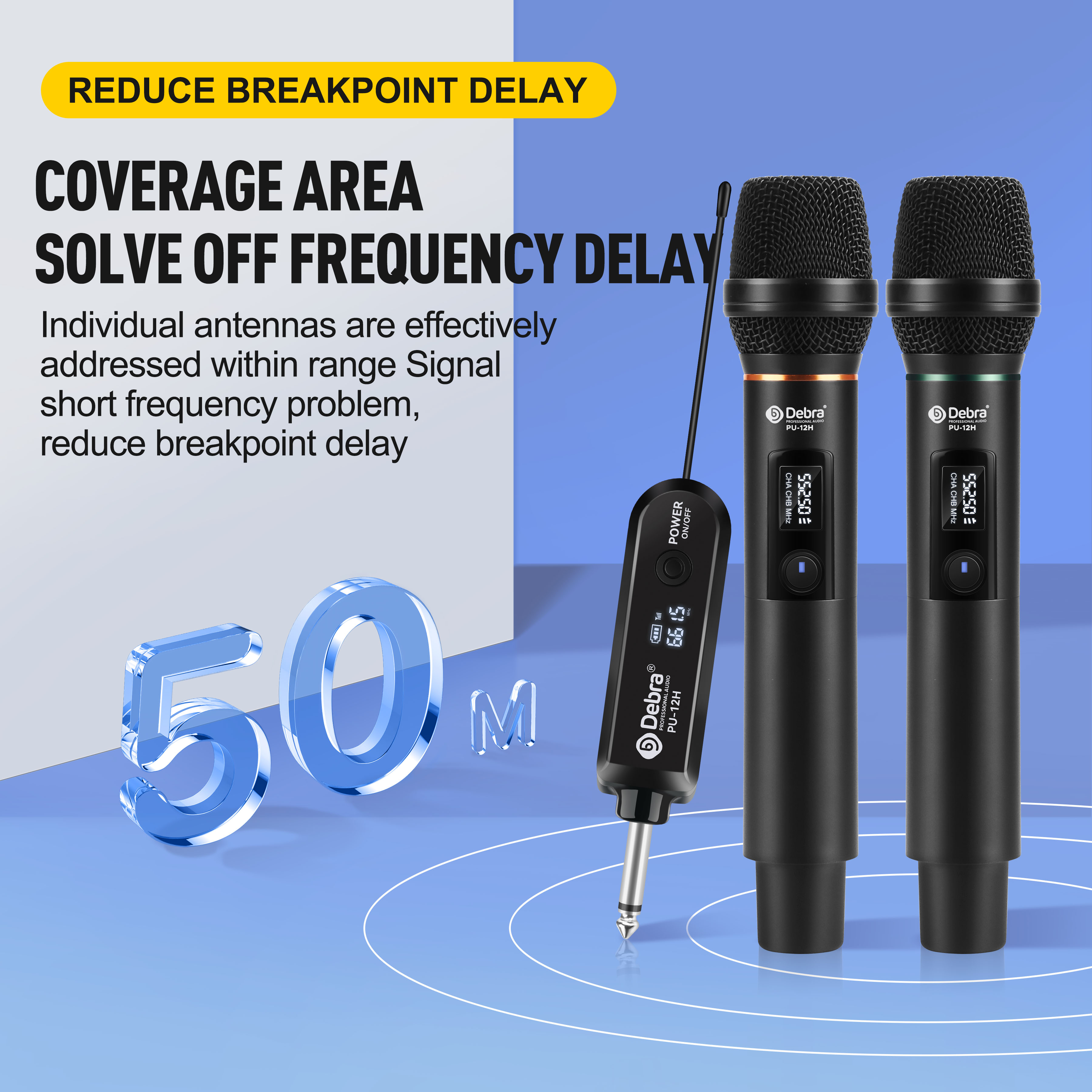

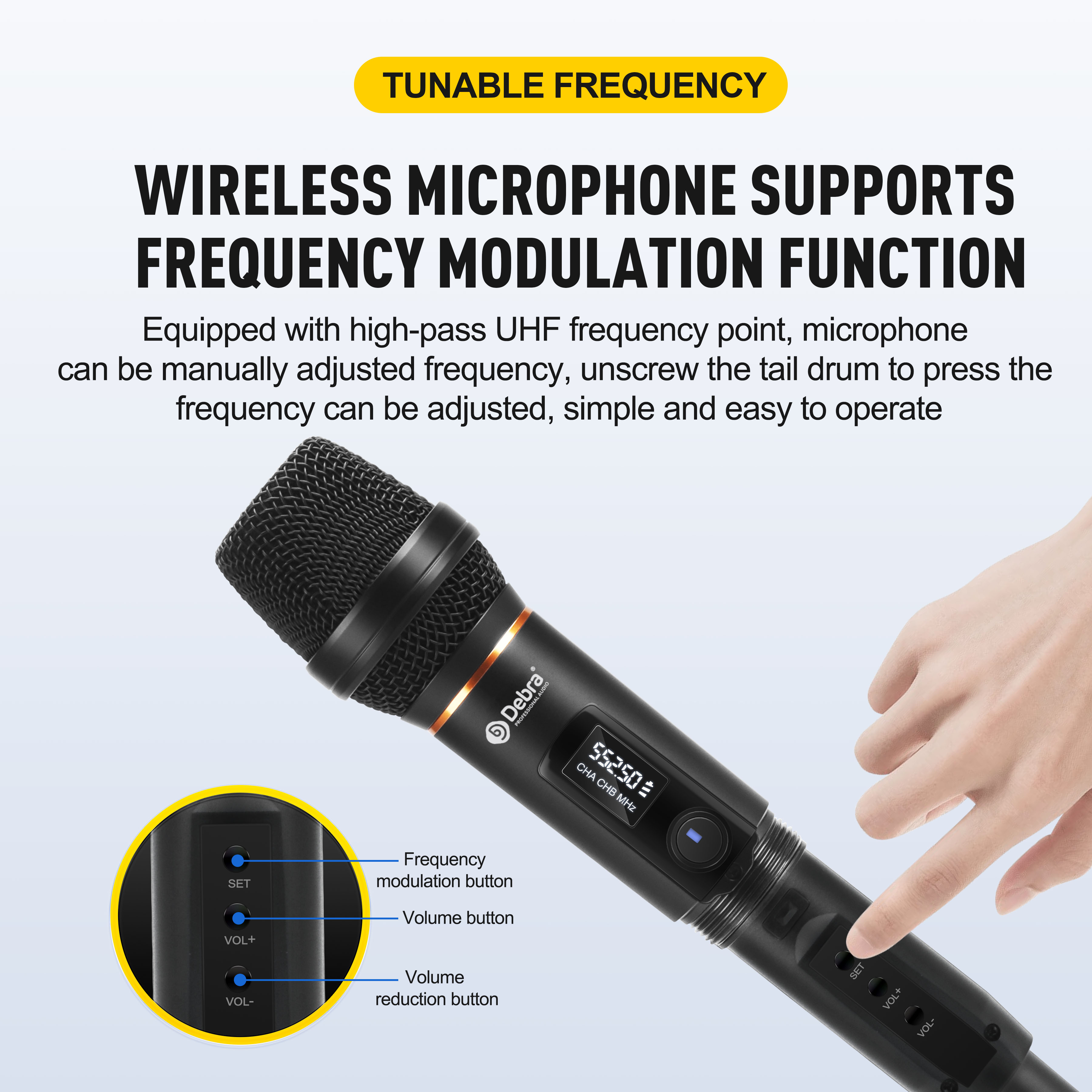

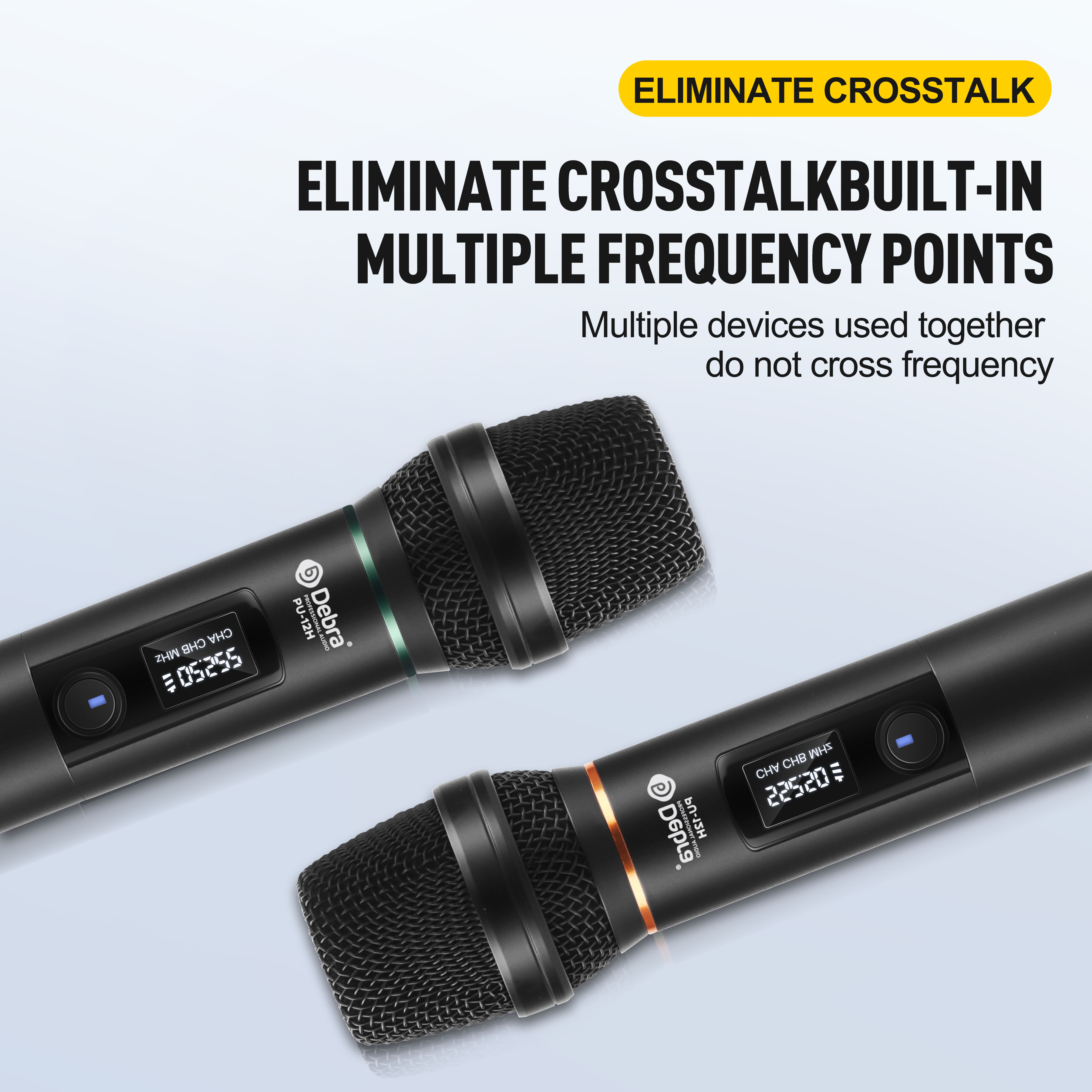

This portable wireless microphone uses encrypted UHF signal transmission. The system can avoid signal interference in some complex environments by changing the frequency. The handheld microphone is made of solid metal. The Mic chip is specially designed for human voice, and the restoration and clarity are better preserved. Thanks to the UHF signal transmission, the signal range and stability are better. This wireless microphone can be used in multiple sets at the same time by locking the ID, which greatly improves the scalability.The receiver and microphone of this product are built-in lithium batteries, which can provide 5-6 hours of battery life when fully charged. This wireless microphone is durable and portable and suitable for various occasions, such as parties, meetings, karaoke and other purposes.

Request A Quote

Specification

Video

FAQ

Download

Transmitter

1. Frequency range 520.50~579.50MHz (subject to the actual product)

2. Number of channels 30 for each channel A and B (conservative value) Each time pairing, the ID code changes randomly within the frequency range set by the manufacturer.

3. Oscillation mode DSP chip frequency lock

4. Frequency stability ±10ppm

5. RF power 10dBm

6. Audio frequency response 40~18000Hz

7. Distortion ≤0.5%

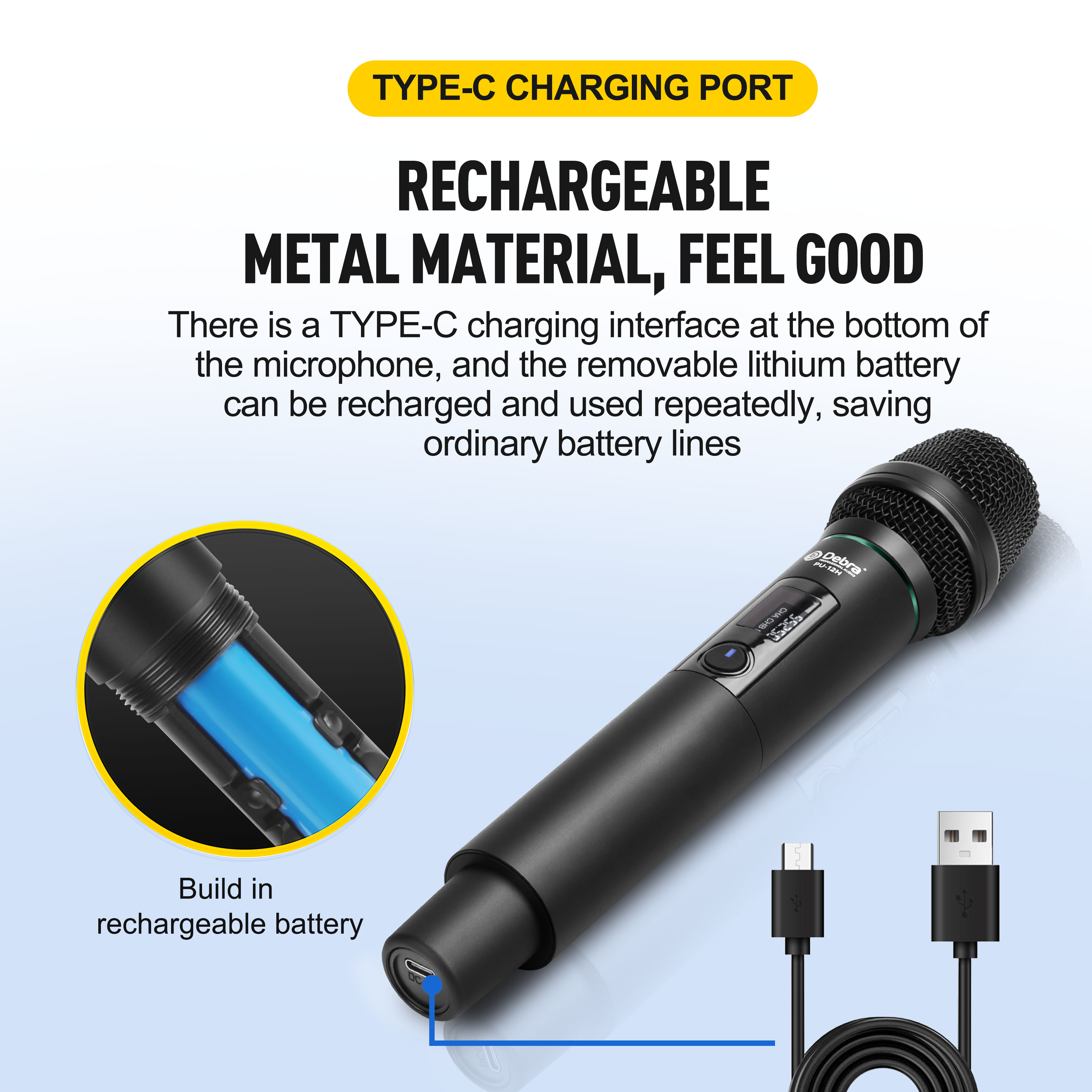

8. Battery specifications 18650 lithium battery or two 1.5V No. 5 batteries

9. Continuous use time 8 hours (depending on battery type and capacity)

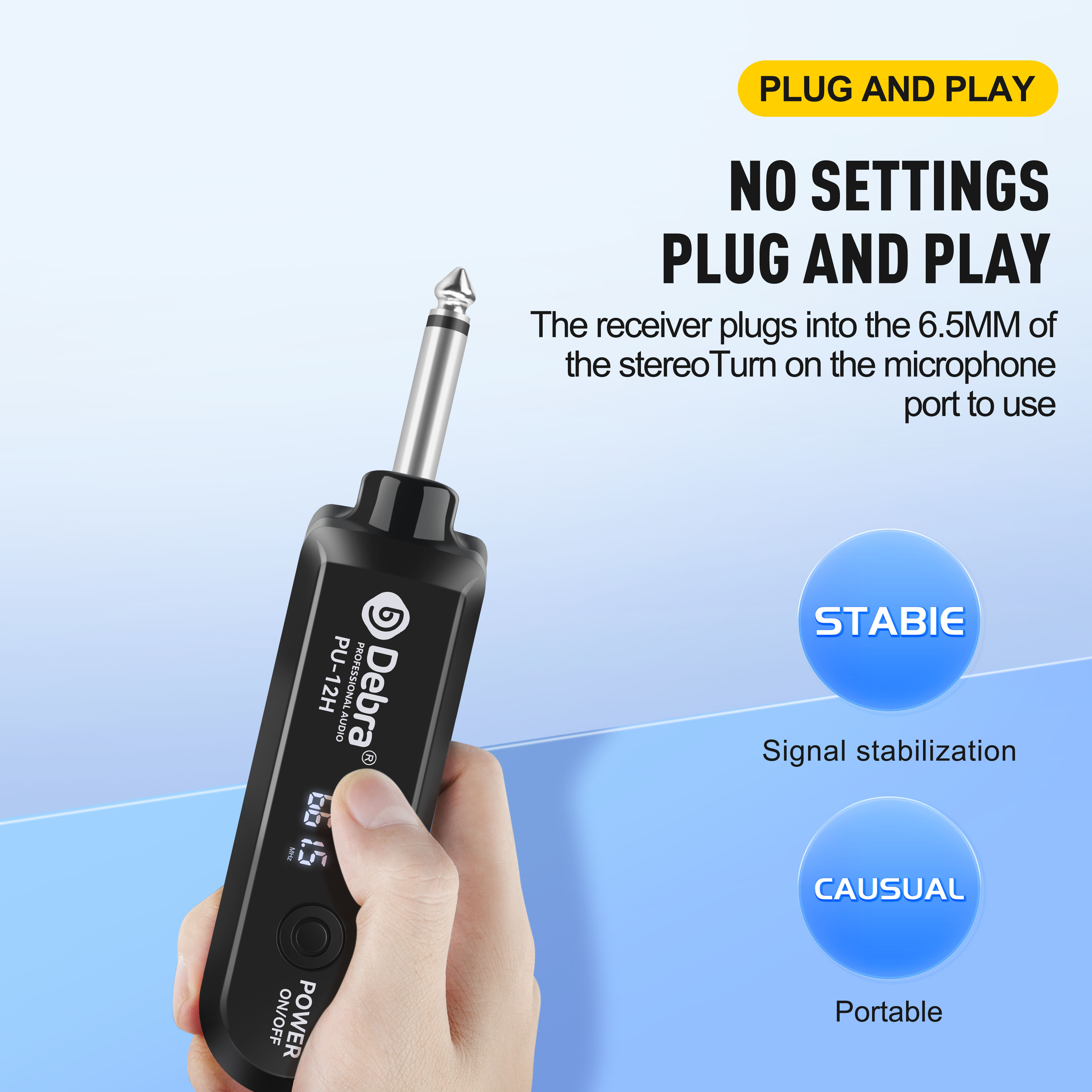

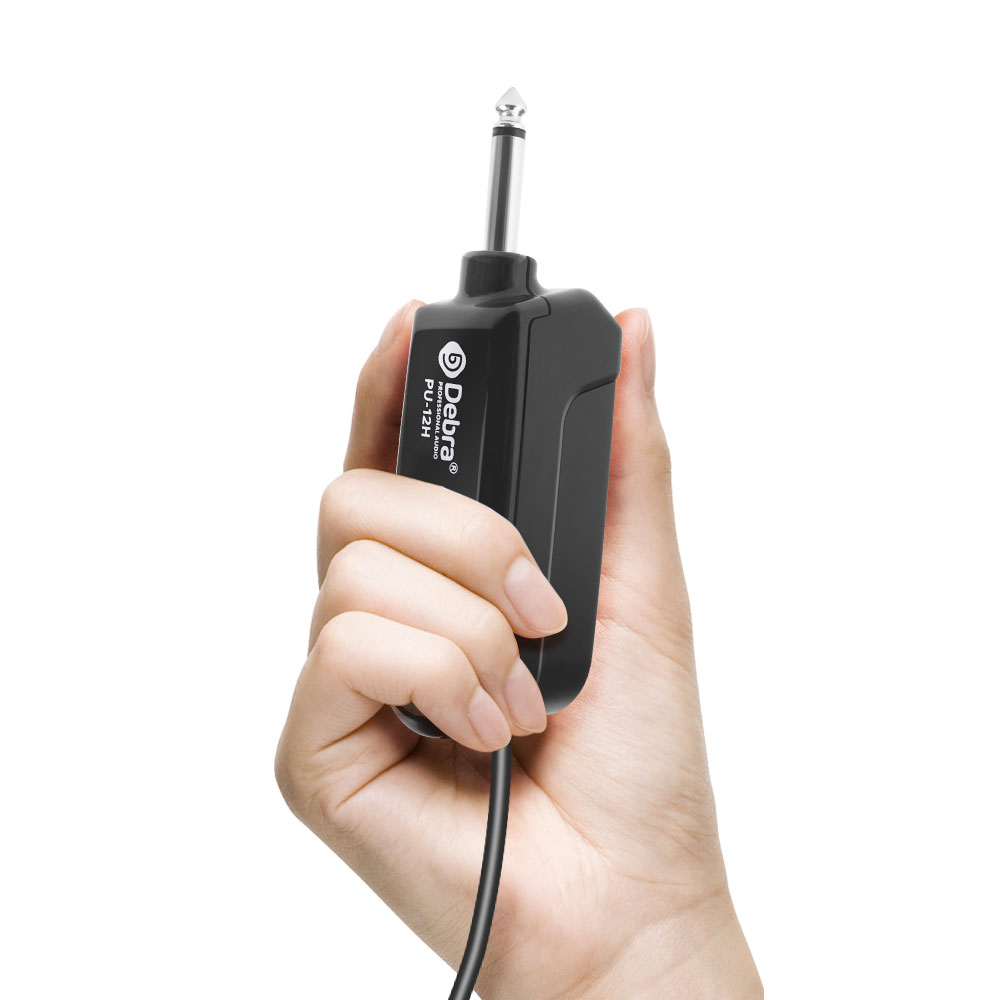

Receiver

1. Frequency range 520.50~579.50MHz

2. Number of channels A, B channels 30 each (guarded value) Each time pairing, the ID code changes randomly within the frequency range set by the manufacturer.

3. Oscillation mode DSP chip frequency lock

4. Rate stability ±10ppm

5. Receiving sensitivity -95~-71dBm

6. Audio frequency response 40~18000Hz

7. Distortion ≤0.5%

8. Signal-to-noise ratio ≥90dB

9. Audio output 350mv (maximum)

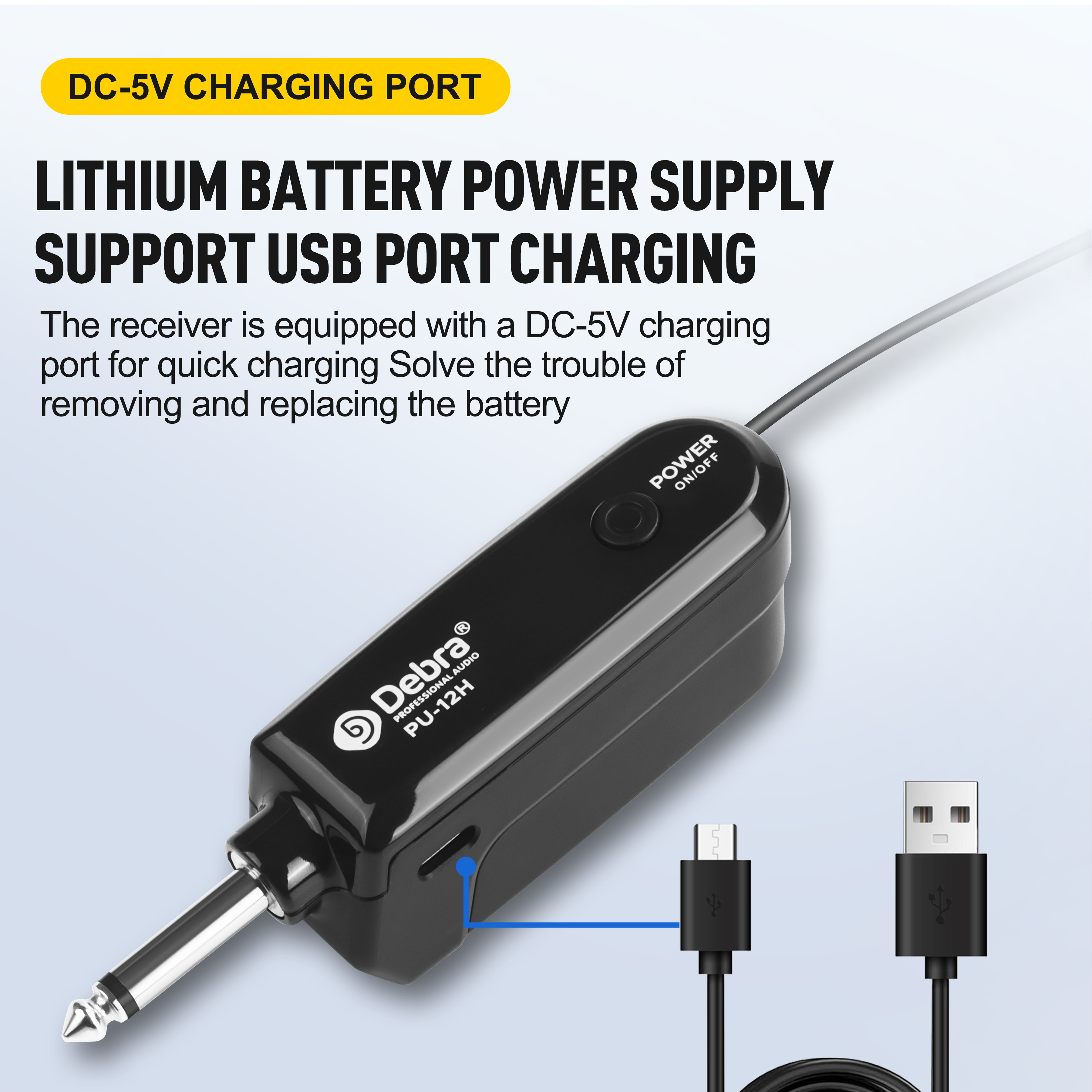

10. Battery specifications 3.7V lithium battery

11. Continuous use time, single frequency transmission 12 hours; dual transmission 8 hours (depending on battery type and capacity)

File Name	File Type	Mega Byte
PU-12H Manual	pdf	2.4MB
