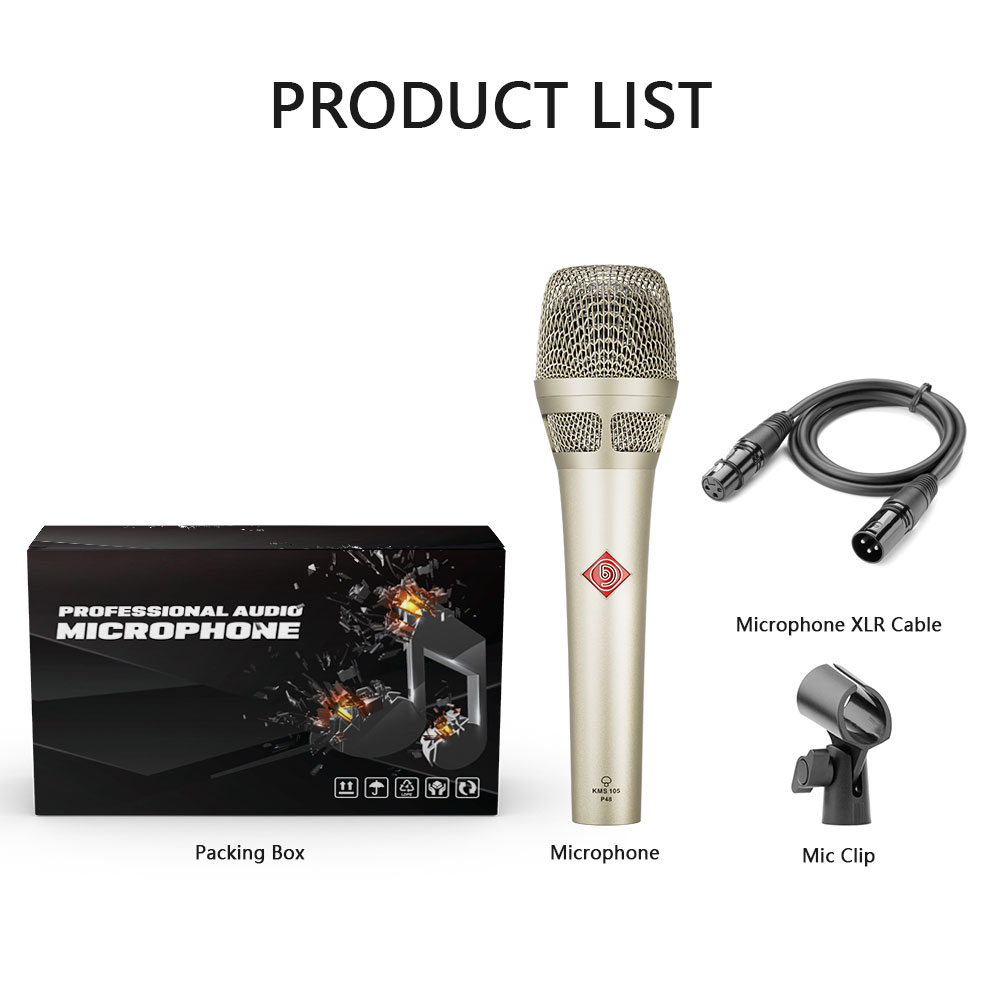

Debra Audio KMS-105 New Professional Recording Condenser Microphone
Acoustical op principle ....Pressure gradient transducer
Directional pattern ......... Cardioid/cardiold/supercardioid
Frequency range...................20Hz..20kHz
Sensitivity...............4.5mV/Pa±1dB s-47d8V
Rated impedance.......................50 ohms
Rated load impedance ...............1000 ohms
Signal-to-noise ratio,
CCIR........................................66 d8
Signal-to-noise ratio,
A weighted......................76 dB
Equivalent noise level,
CCIR...............................28 dB
Equivalent noise level,
A-weighted ............................18dB-A
Maximum SPL
for less than 0.5 % THD................150dB
Max. output voltage...................12 dBu
Supply voltages..................48V±4V
Current consumption..................3.5 mA
Matching connector..............XLR3F
Weight......................approx.300g
Diameter............48mm
Length....................180mm
94 dBSPL equiv.1Pa=10μbar
0dB equiv.20μPa
