Product parameter：

Features System:

Carrier Frequency Range: UHF 500 MHz - 600 MHz

Stability: +0.005%

Ambient Temperature: -10 +55

Max Deviation: +18kHz | S/N Radio: > 70dB

Squelch: Tone control and nose lock dual squelch

Frequency response: 80 Hz to 15 kHz

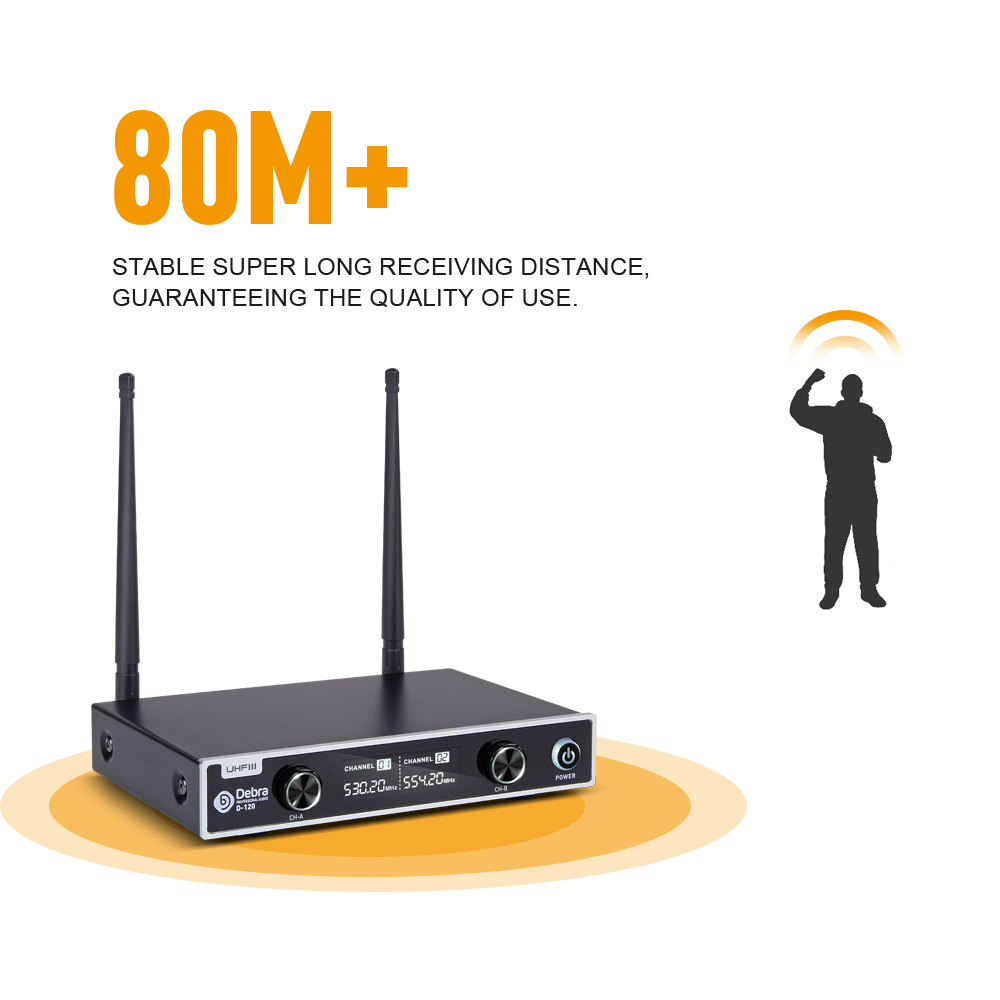

Operating Range: 50 in open area (about 160 Ft)

Squelch Control: Noise Lock

Receiver

Receiving mode: Quartz Locked

Sensitivity: 10uV (up 40dB SINAD / at 15 kHz Deviation)

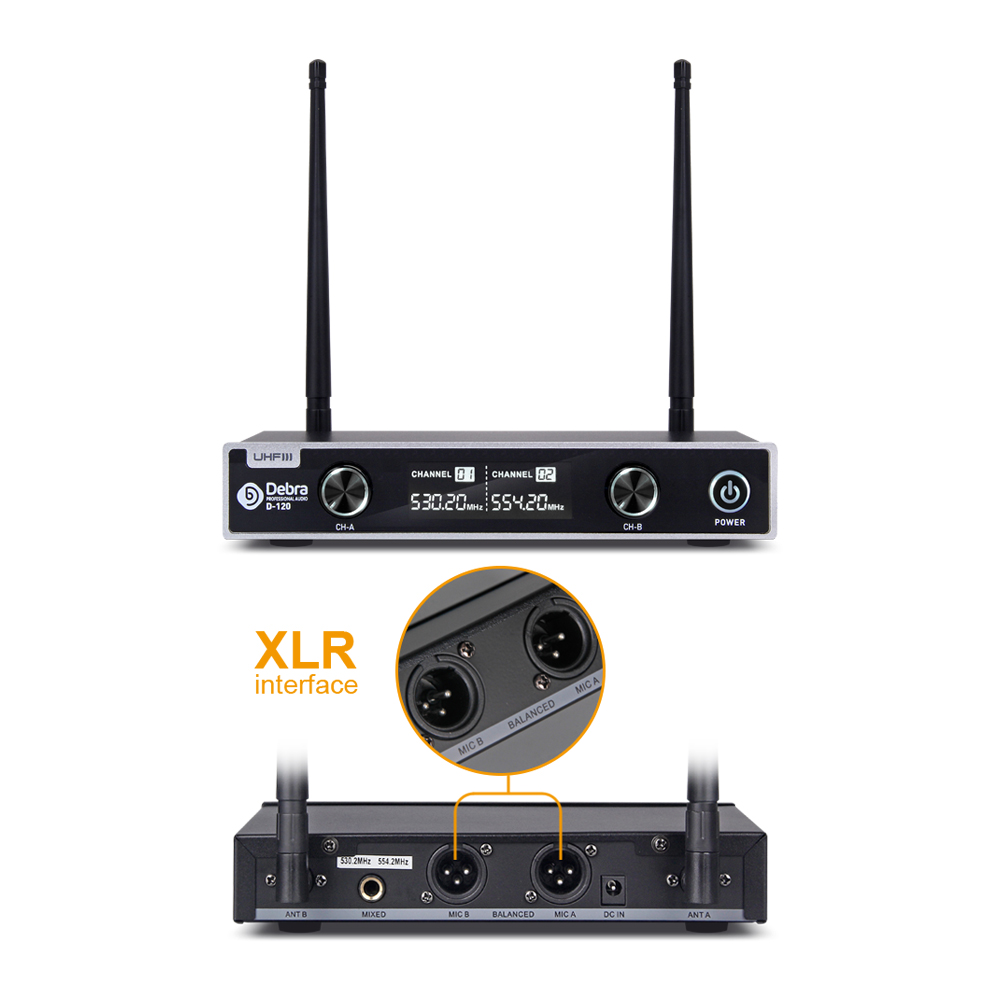

Audio Ouput 0-350mV/5K

Power Requirement: AC 110V/220V, 50Hz

Power Adapter: 110-240V, 50Hz

Transmitter:

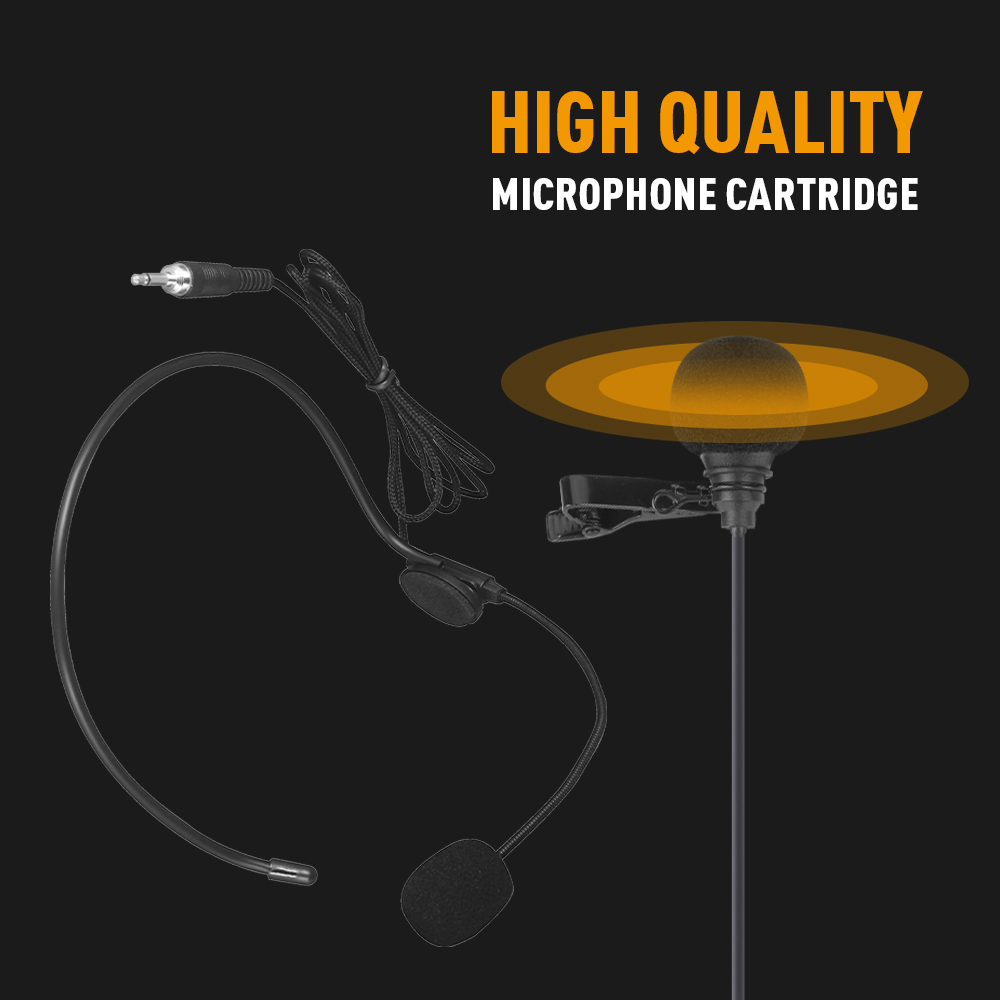

Microphone: Dynamic (Handheld)

Antenna: Built-in

Modulation: FM

Frequency Stability (+55~-10degrees C): 0.005% (20ppm)

Rate Deviation: 75 kHz

T.H.D at 1 kHz: less than 0.8%

Signal/Noise Ratio: 103 dB

RF Output:<10mW

Current Consumption: 30mA

Battery Life: 9 Hours (AA batteries)
