Home > Wireless Microphone System >  D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）
D-220 UHF Wireless Microphone（1Handheld Mic 1Headset 1Lavalier Mic）

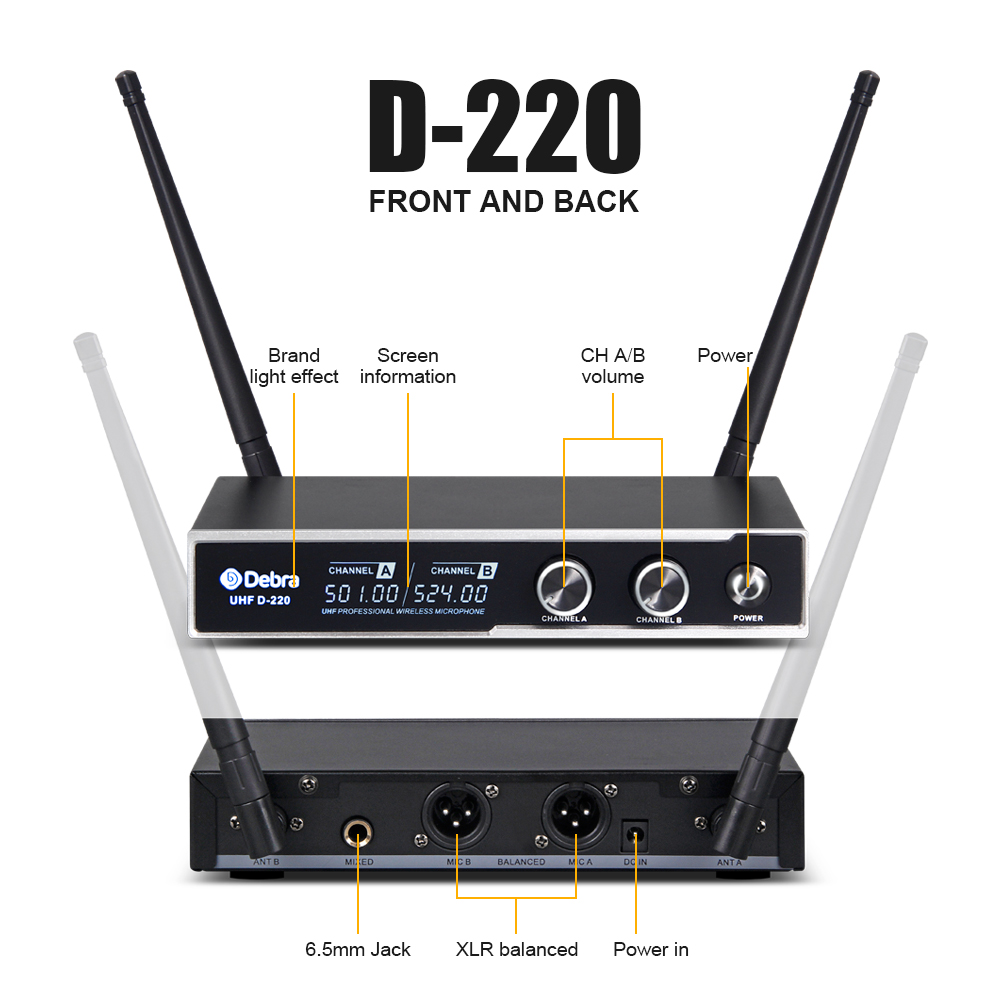

1. Brand new receiver panel design : 5mm AL panel with complete mirror finished design. 2. LED LOGO lighting display, logo shows up after unit turnning on. 3. When trnasmitter connected with receiver successfully, Volume control knob LED will light up. 4. Metal handheld microphone with excellent cartridge and brand new transmitter circuit design. 5. Real UHF transfersignal, improve anti-interference function of the uinit. 6. Excellent receving distance upto 80M. 7. New design bodypack transmitter wtih better experience It is a high quality professional and reliable 2 channel UHF wireless microphone systems. It uses the most advanced technology called SMT (Surface Mounted Technology) and is made of the highest quality surface mounted components to ensure its quality and reliability. It's ideal for professional performance, in church or home karaoke use.
Request A Quote
Specification
Video
FAQ
Download


Features System:

Carrier Frequency Range: UHF 500 MHz - 600 MHz

Stability: +0.005%

Ambient Temperature: -10 +55

Max Deviation: +18kHz | S/N Radio: > 70dB

Squelch: Tone control and nose lock dual squelch

Frequency response: 80 Hz to 15 kHz

Operating Range: 50 in open area (about 160 Ft)

Squelch Control: Noise Lock


Receiver

Receiving mode: Quartz Locked

Sensitivity: 10uV (up 40dB SINAD / at 15 kHz Deviation)

Audio Ouput 0-350mV/5K

Power Requirement: AC 110V/220V, 50Hz

Power Adapter: 110-240V, 50Hz

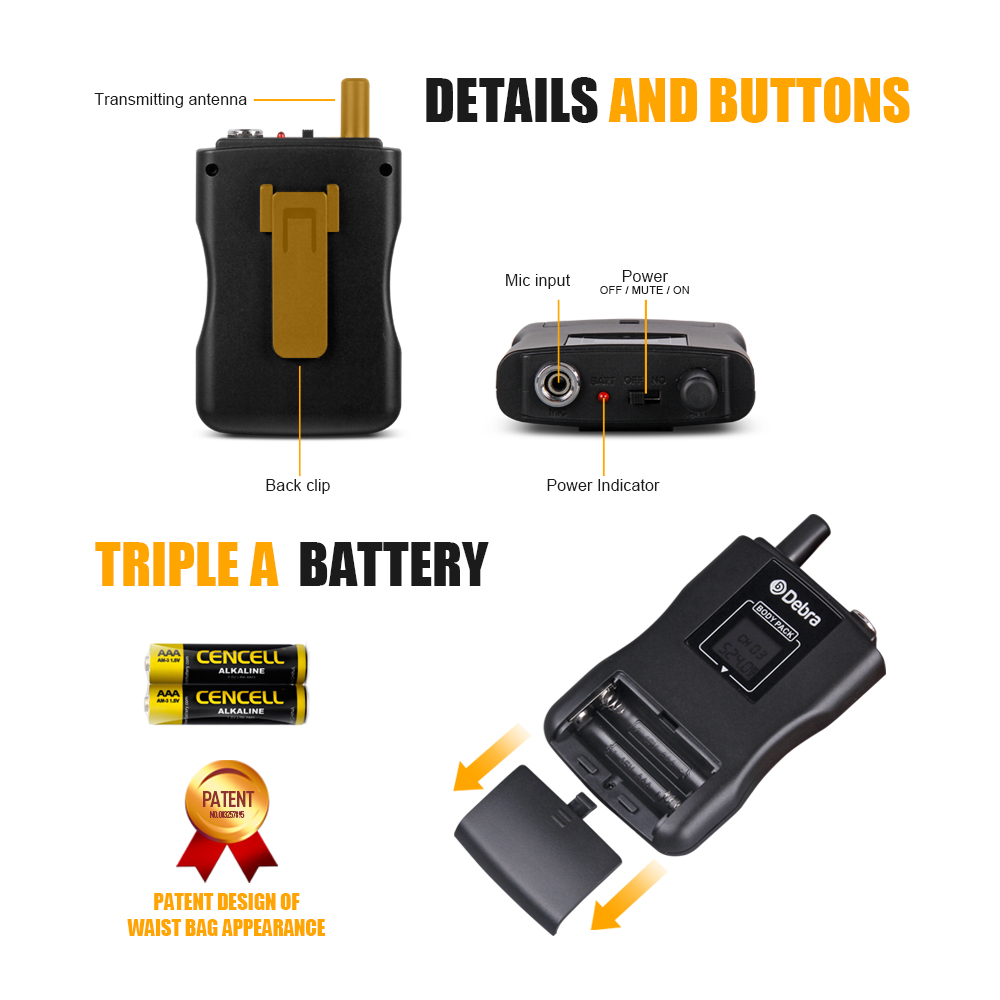

Transmitter:

Microphone: Dynamic (Handheld)

Antenna: Built-in

Modulation: FM

Frequency Stability (55~-10 degrees C): 0.005% (20ppm)

Rate Deviation: 75 kHz

T.H.D at 1 kHz: less than 0.8%

Signal/Noise Ratio: 103 dB

RF Output:<10mW

Current Consumption: 30mA

Battery Life: 9 Hours (AA batteries)
