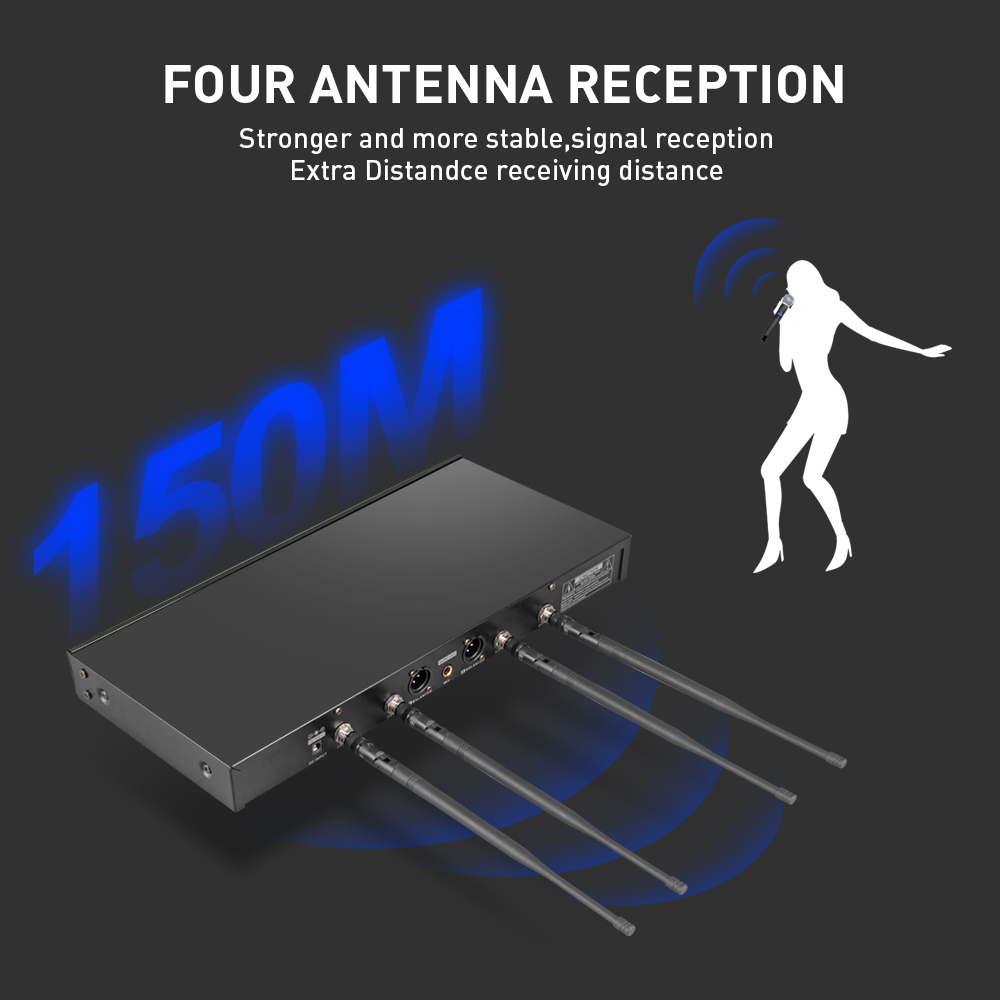

1.True diversity dual microphone four receivers and antennas, effectively overcome the dead angle frequency, UHF band, PLLdigital frequency synthesis. The optimum distance is up to 150 meters. 2.Infrared frequency, the transmitter can be interchangeable, simple operation,advanced features. 3.A total of 200 frequency points are available, so you can use 100 set points per channel, so you don't have to worry about frequency interference. High sensitivity, meeting outdoor distance and meeting performance requirements. 4.Our product uses a top microphone box/core to match the top board for better vocal content reproduction. This means that the microphone system can be used by professionals or individuals. 5.Automatically search for free channels, automatically avoid interference channels. 6.If you want the good various performance, show, lectures, singing, it is your best choice.
Specification
Video
FAQ


Transmitter:

Type: Handheld Microphone;

 Cartridge: Dynamic

 Oscillation mode: Phase locked frequency synthesis

 Modulation: Broadband modulation

 Mirror suppression: 50dB

 Modulation frequency deviation: 25Hz

 Channel conversion mode: touch switch/automatic frequency

 Power need: 1.5V x 2 AA batteries (Not include)

 Normal battery life: About 6 hours

(Different battery have different time)


Receiver:

Sensitivity: -100dBm

 Oscillation mode: Phase locked frequency synthesis

 Signal to noise ratio: 90dB

 Distortion: 0.5%

 Output: 2 balanced outputs(XLR), 1 6.35 mixed output

               (unbalanced socket 6.3)

 Output voltage: balanced output 500mV, mixed output 350mV

                             (25KHz modulation)

 Power: AC power supply 1A,110-240V


Frequency range: UHF500-600MHz

 The total number of channels: 100 × 2

 Modulation: Broadband modulation

 Dynamic range: 110dB

 THD: 0.5% @ 1KHz

 Frequency response: 50Hz ~ 18KHz ± 3dB

 Signal to noise ratio: 90dB

 Effective distance: 150M/490 Foot (In open area)
