MU2 UHF Portable Wireless Microphone

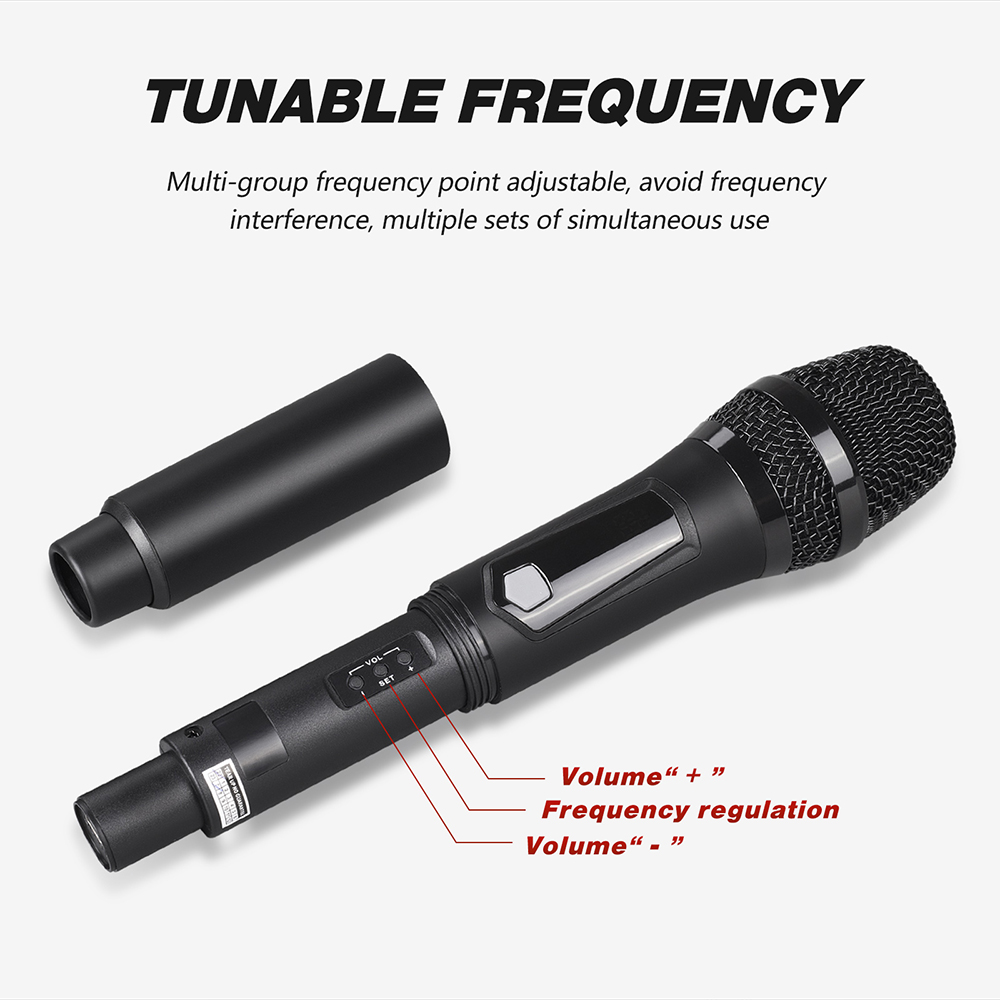

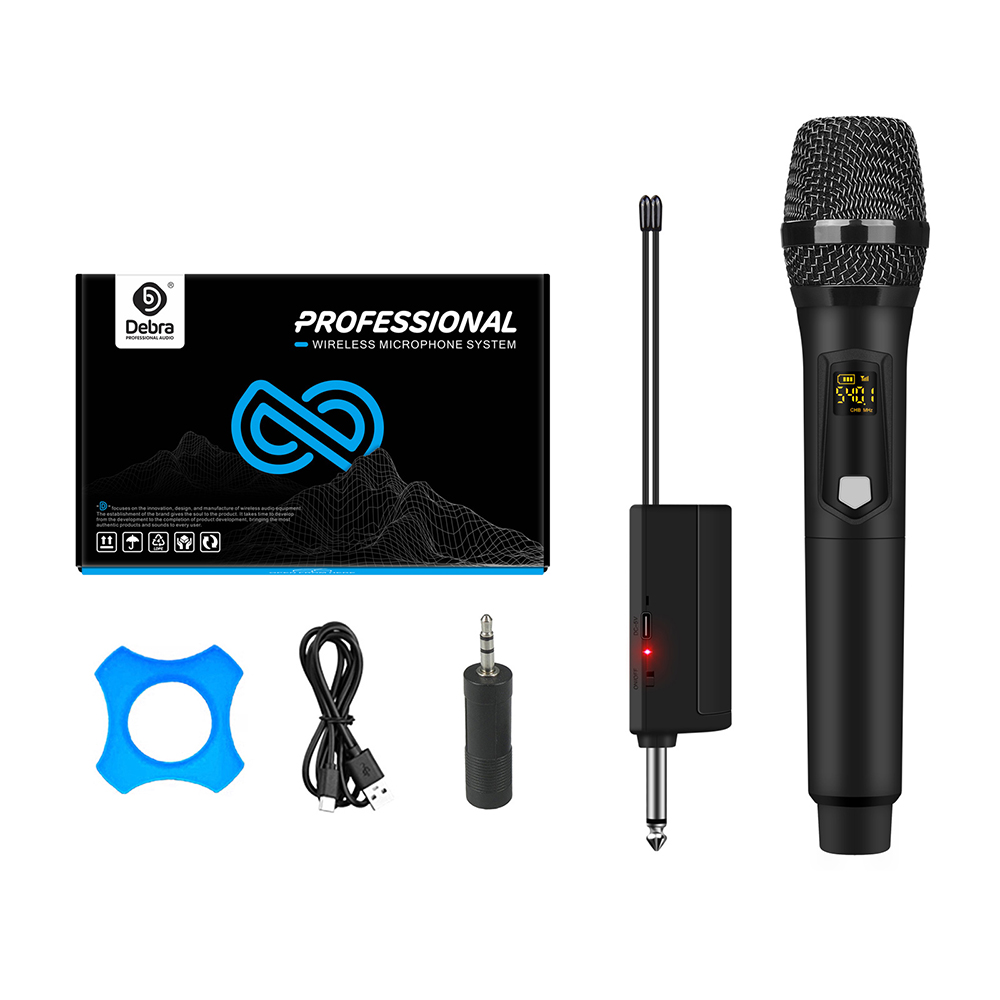

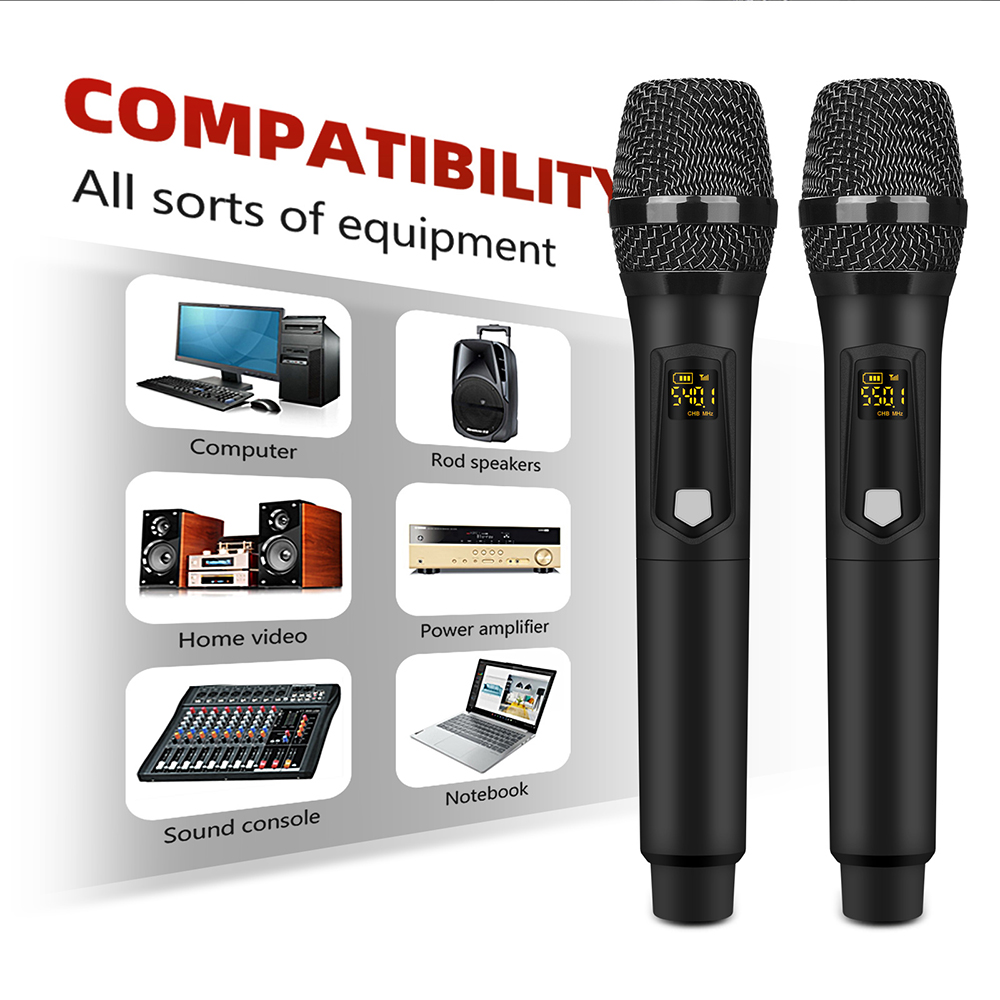

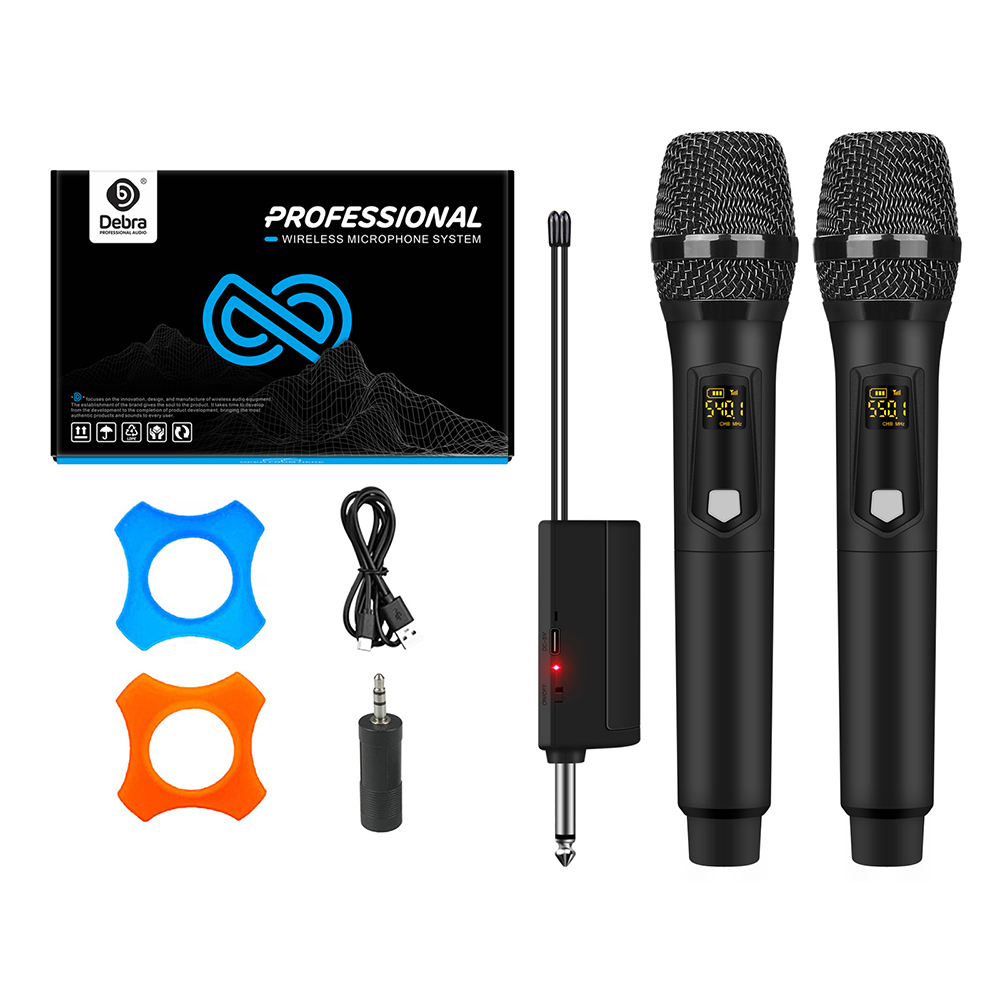

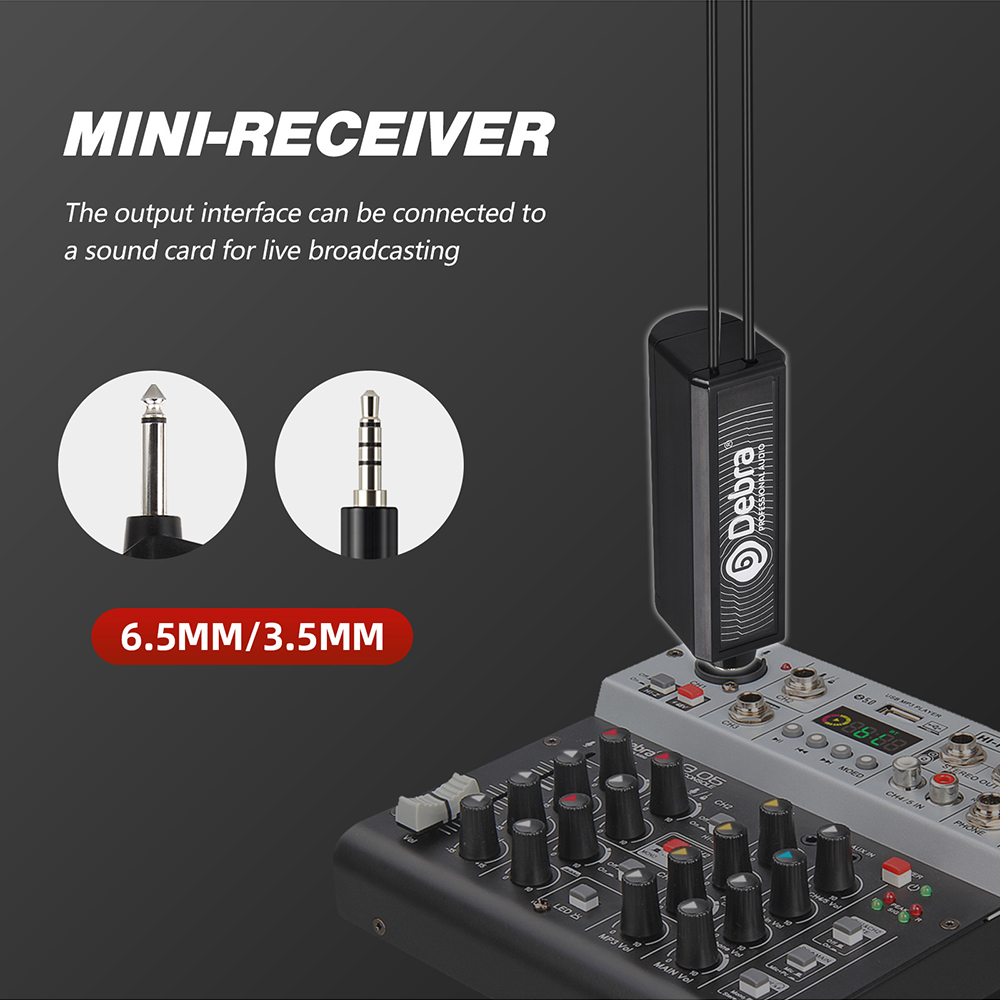

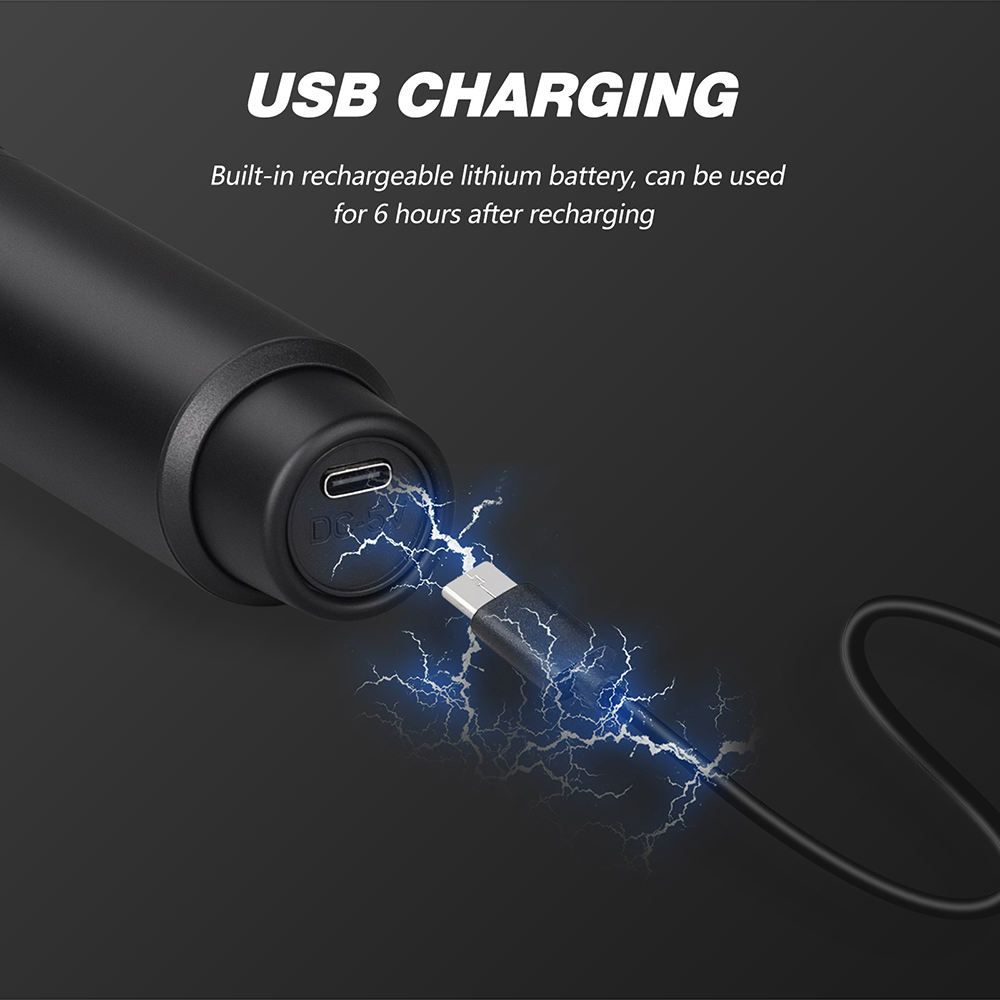

The Debra Audio MU1/2 single-channel/dual-band portable UHF wireless microphone system is a simple plug-and-play rechargeable universal microphone. It is suitable for karaoke and outdoor singing, speeches and performances. The light weight and mini receiver can be converted to 3.5mm to adapt to various audio equipment, the built-in 18650 battery can provide up to 6 hours of battery life, the UHF signal transmission can be adjusted frequency, and the anti-interference ability is excellent. Make MU1/2 suitable for various occasions, and the cost performance is very high!

Request A Quote

Specification

Video

FAQ


Channel: Single/Dual channel

Stability: +0.005%

Frequency response: 40 HZ-18 KHZ

Rf output power: =10mW

Modulation mode: UHF band

Maximum deviation range: +50KHz

Sensitivity: (S/N = 30 DB) > 2 MV

Operating temperature: 14° F-122 °F

Harmonic radiation: 63d Bm

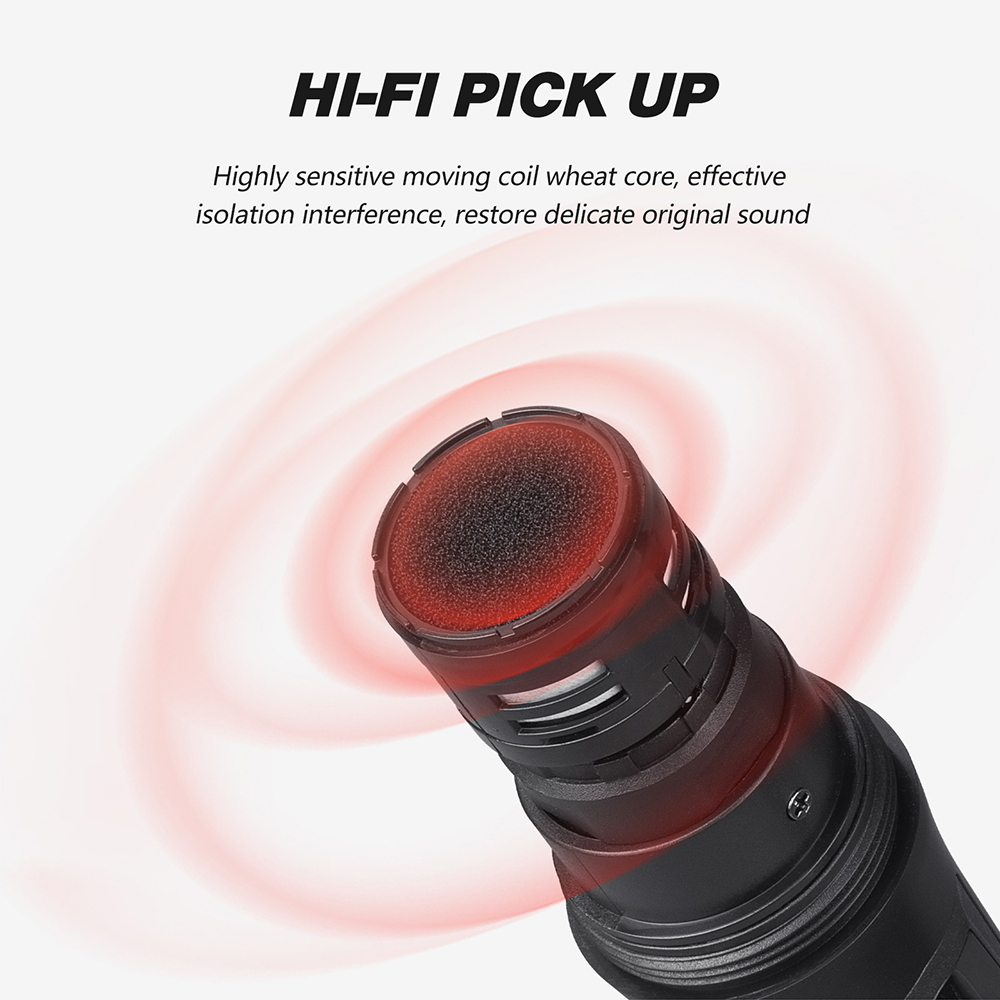

Sound pickup mode: moving coil type

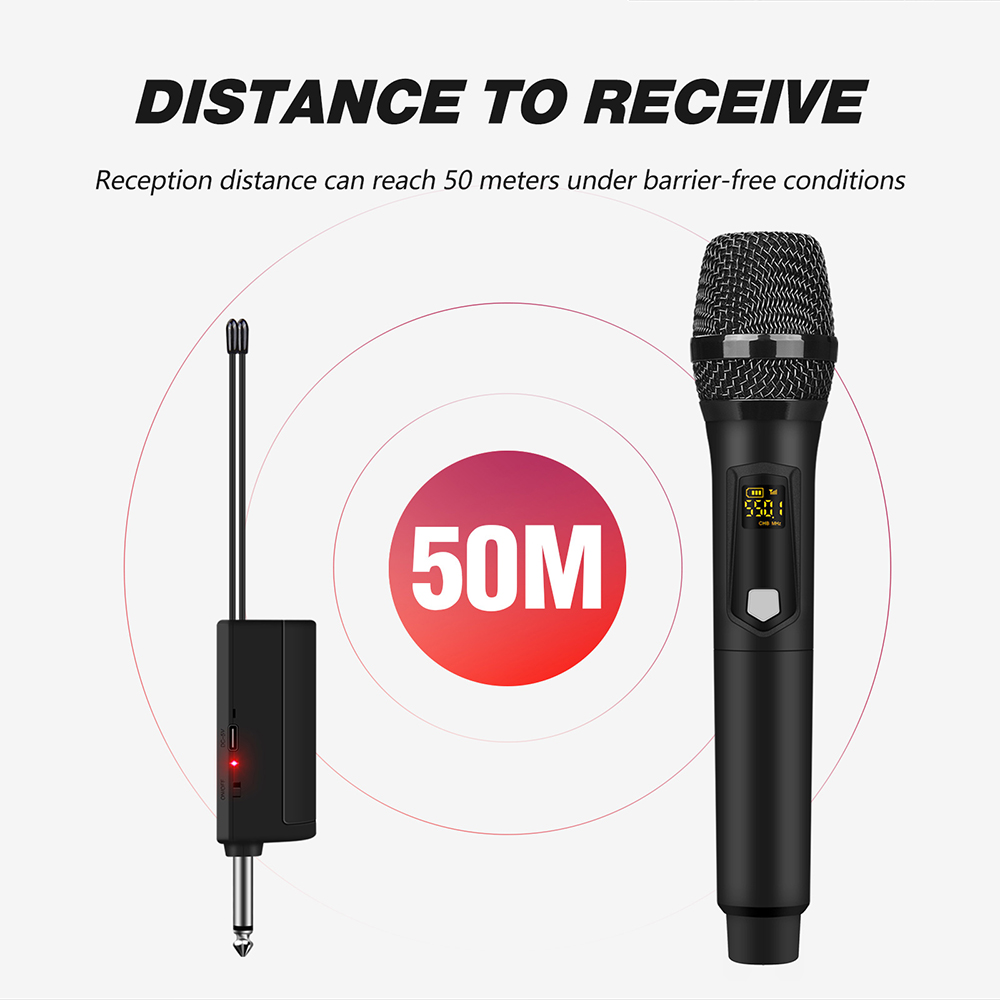

Operating range: 60 m

Microphone mode: fixed

Power supply: DC 5V

Current consumption: 35MA

Microphone specification

Mi core type: Moving coil

Pick up way: Heart to

Frequency range: 500-690MHz

Radio frequency bandwidth: 60MHZ

Frequency points: 48

Transmission power: 10mW

Frequency response: 50HZ-18KHz

Dynamic range: 96dB

Harmonic radiation: «-50dBc

The distortion degree of: < 0.1%

Receiver specification

Frequency range:

500-690MHz

Radio frequency bandwidth: GOMHZ

Frequency points: 2*48

Signal to noise ratio: 96dB

Receiving sensitivity: -95dBm
