Receiver Specifications
Transmission frequency band:2400MHz~2483.5MHz
Transmission type:frequency hopping/digital FSK
Receiving sensitivity:-86dBm
Antenna method:Built-in F type antenna
Display mode:multi-function LED display mode

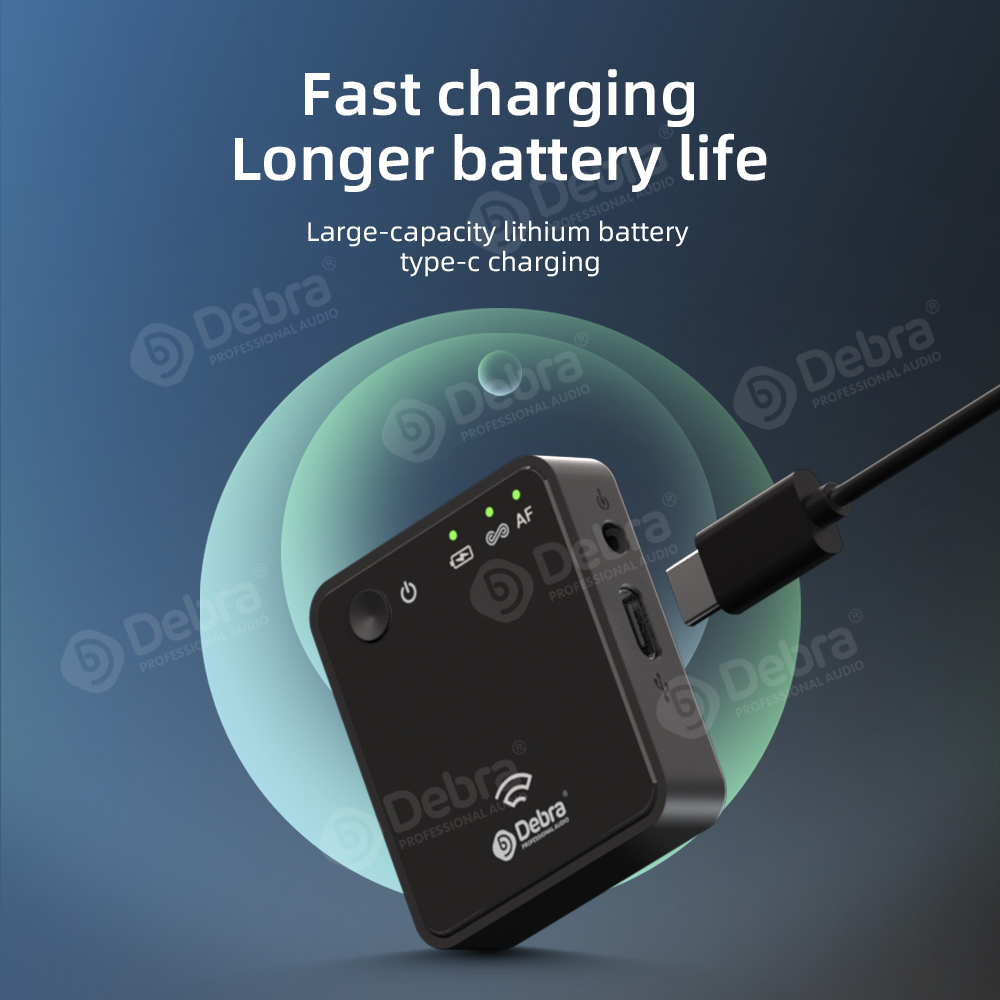

Power requirements:built-in lithium battery,
standard USB 5V charging
via TYPE-C interface
Battery life>7 hours
Output connector:3.5mm TRS
Working temperature:-5℃ to + 50 ℃

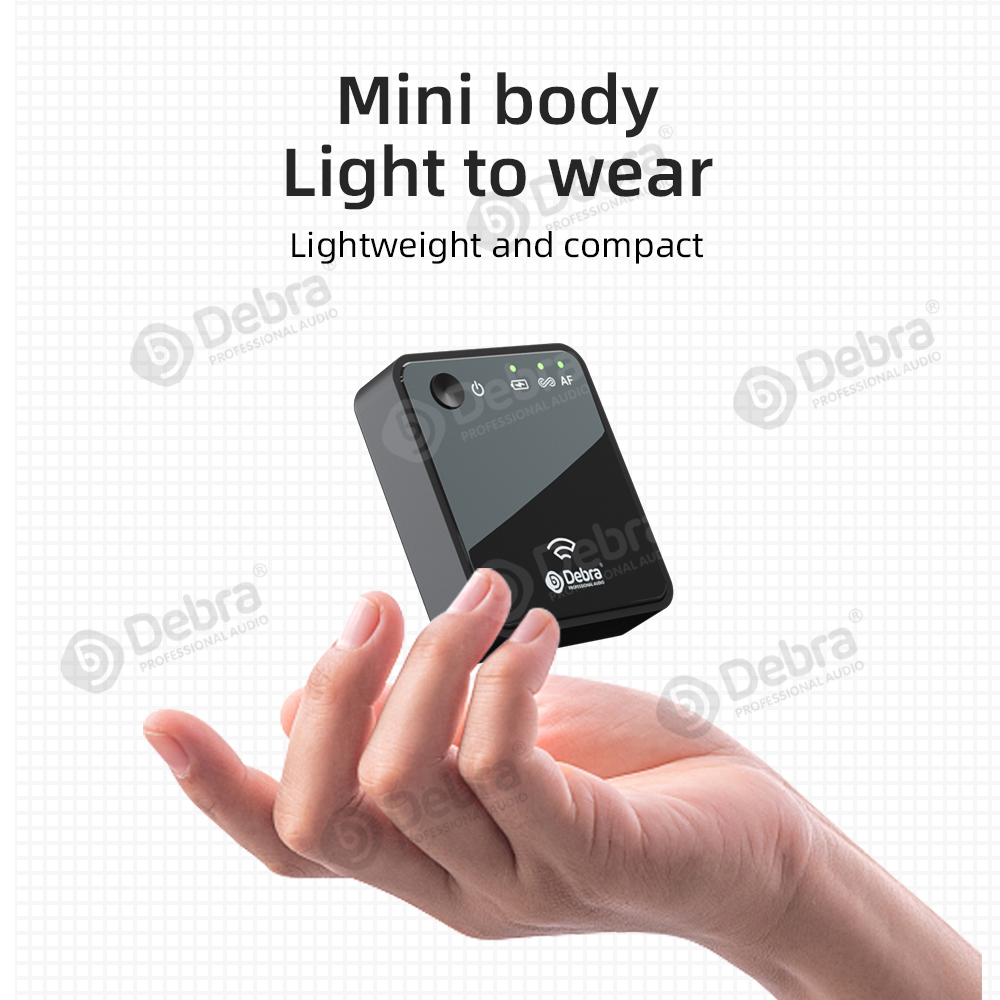

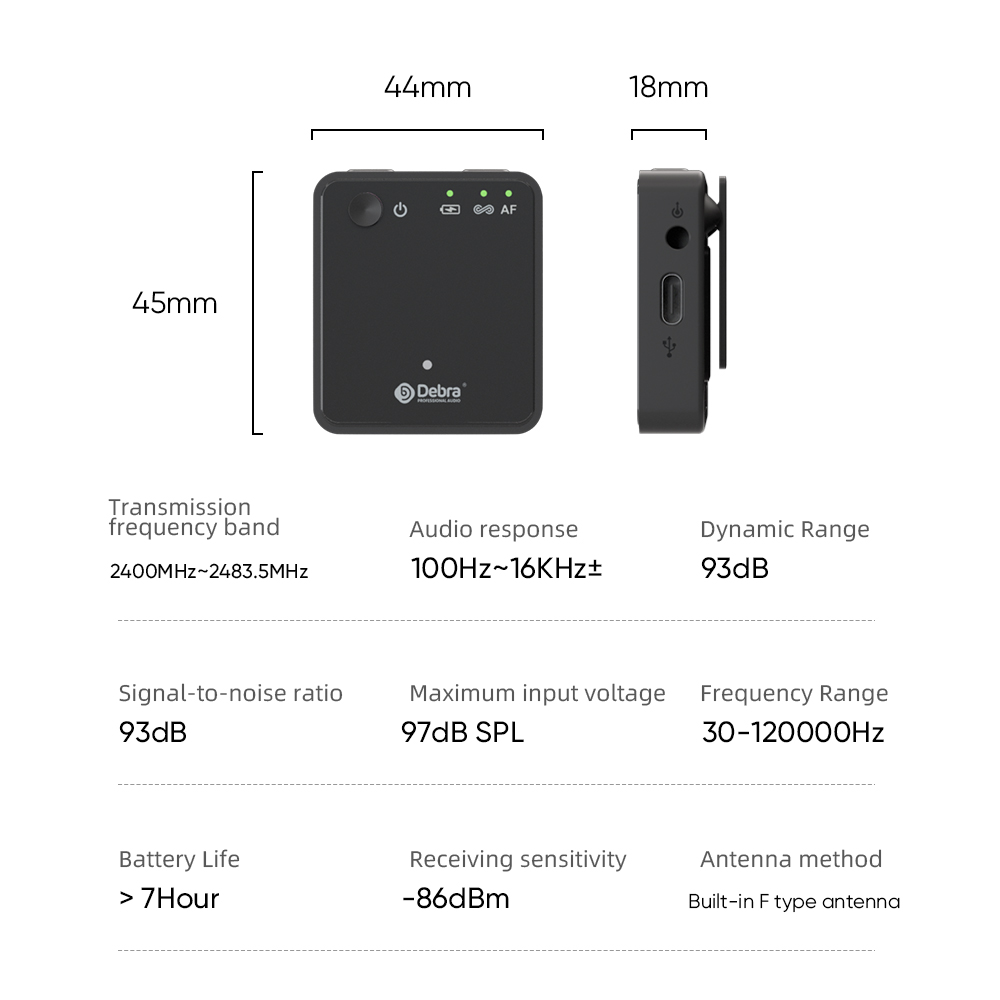

Dimensions:50mm*44.5mm*15mm
Weight:35g
Transmitter Specifications
Transmission frequency band:2400MHz~2483.5MHz
Modulation type:frequency hopping/digital FSK
Transmit power:10dBm
Antenna method:Built-in F type antenna

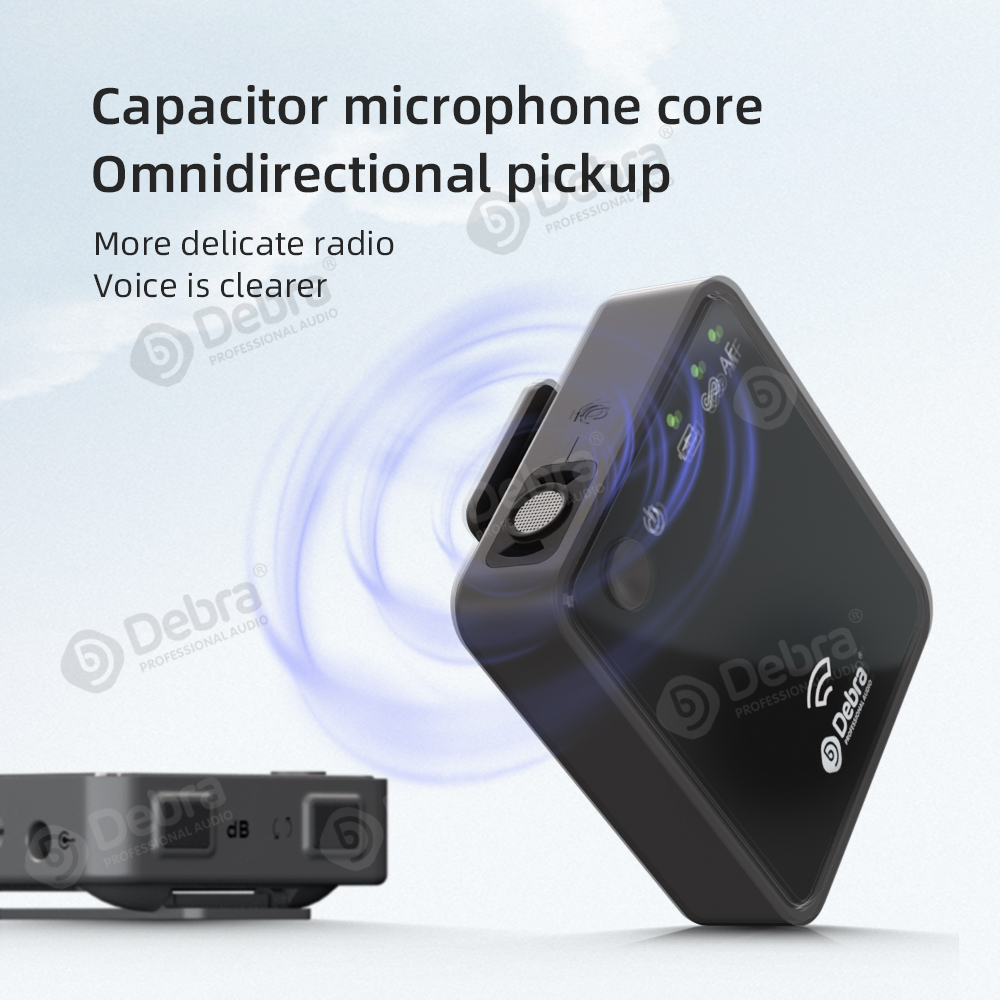

Microphone pickup method:omnidirectional(built-in microphone and
External lavalier)
Display mode:multi-function LED display mode
Power requirements:built-in lithium battery,standard USB 5V charging
via TYPE-C interface
Battery life>7 hours
Output connector:3.5mm TRS
Working temperature:-5℃ to + 50 ℃
Dimensions:50mm*44.5mm*15mm
Weight:35g
