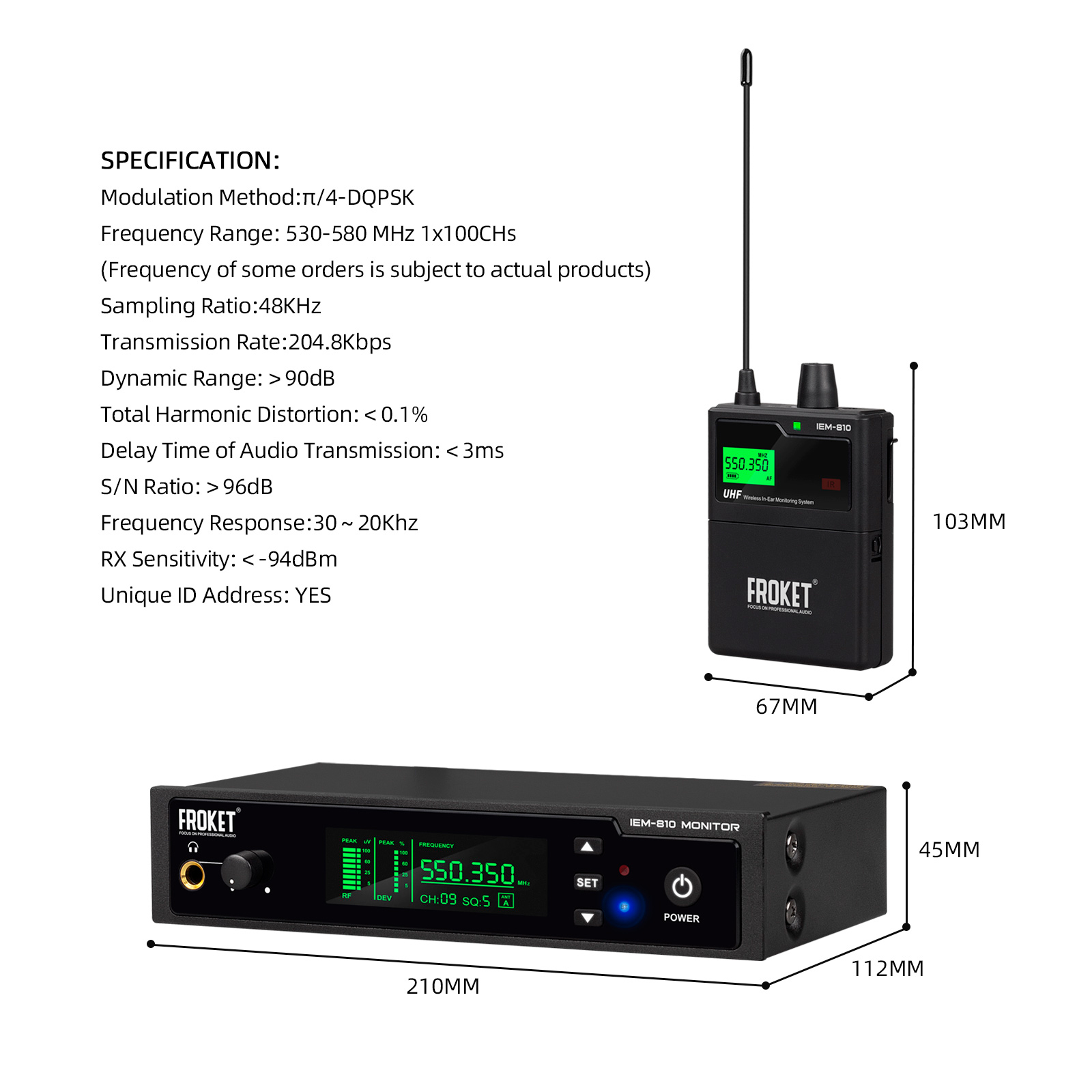

SPECIFICATION: Modulation Method: π/4-DQPSK Frequency Range: 530-580MHz 1x100CHs (Frequency of some orders is subject to actual products) Sampling Ratio: 48KHz Transmission Rate: 204.8Kbps Dynamic Range: >90dB Total Harmonic Distortion: <0.1% Delay Time of Audio Transmission: <3ms S/N Ratio: >96dB Frequency Response:30-20Khz RX Sensitivity: <-94dBm Unique ID Address: YES
Specification
Video
FAQ
Download

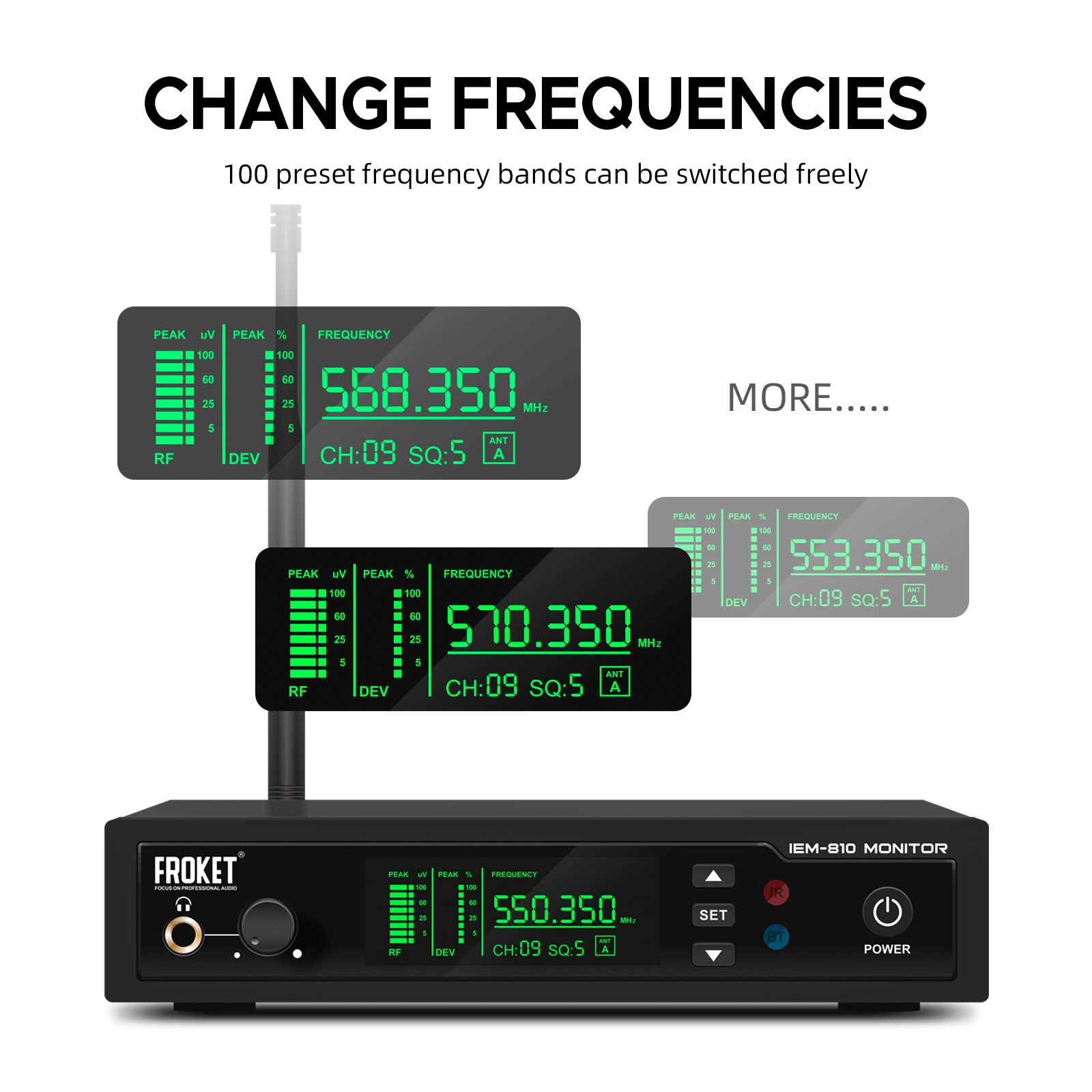

  • GREAT UHF BAND: This mono in-ear monitoring system adopts ultra-high frequency audio signal transmission, which improves the overall performance, anti-degradation, anti-serialization, stronger and more stable signal, better signal-to-noise ratio. The frequency range is 510-580 MHz. 100 frequencies are preset for each channel, which can be switched at will and will not produce crosstalk even when used in multiple groups.

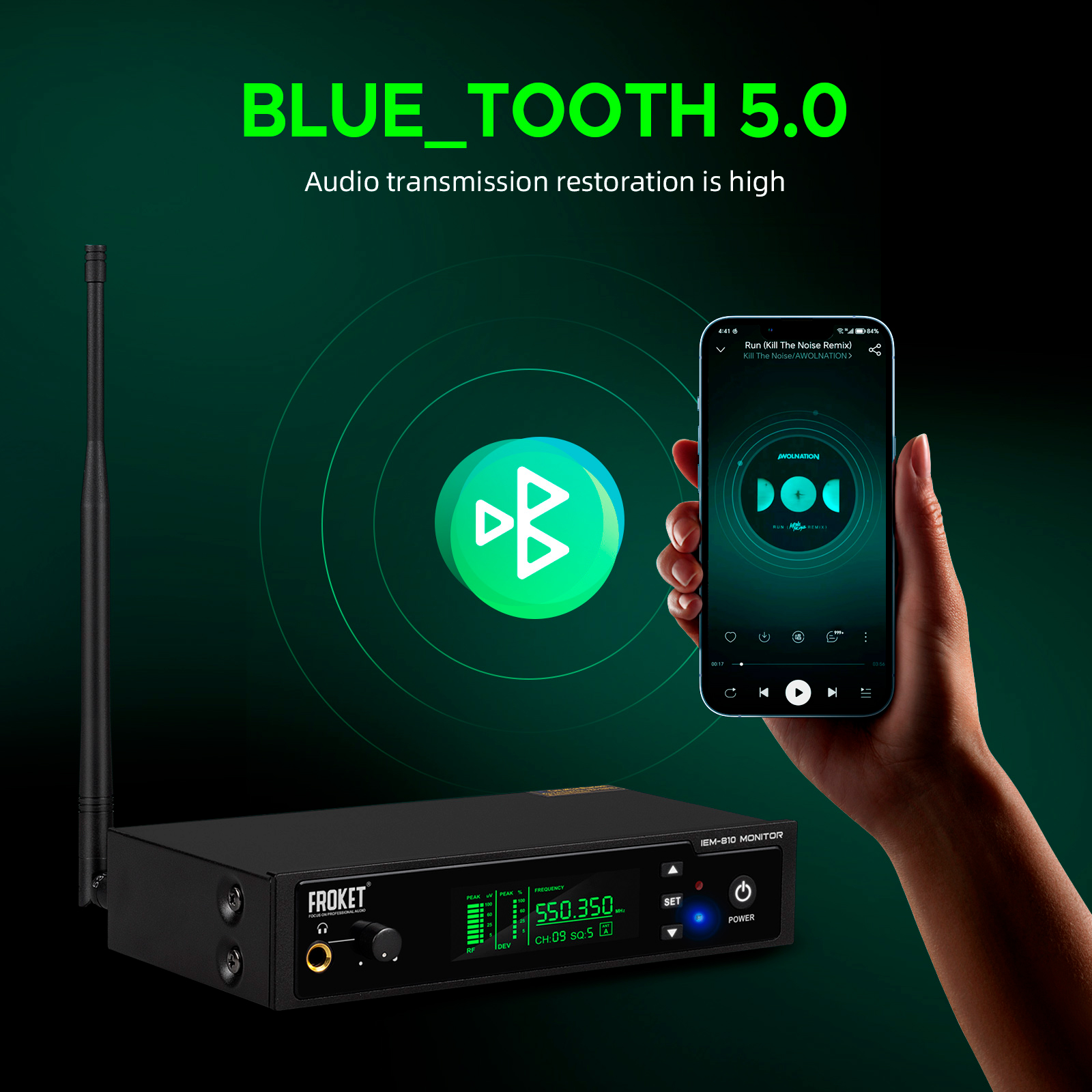

  • FEATURE DESIGN: The transmitter is equipped with an LCD panel, which can display RF and equipment usage, frequency and channel information. The receiver is equipped with an LCD display to monitor the battery level and frequency. You can press and hold the "SET" button of the transmitter for about 3 seconds, you will find that the "BT" indicator of the transmitter does not light up and the Bluetooth function is off. If you want to turn on the Bluetooth function, repeat the above steps

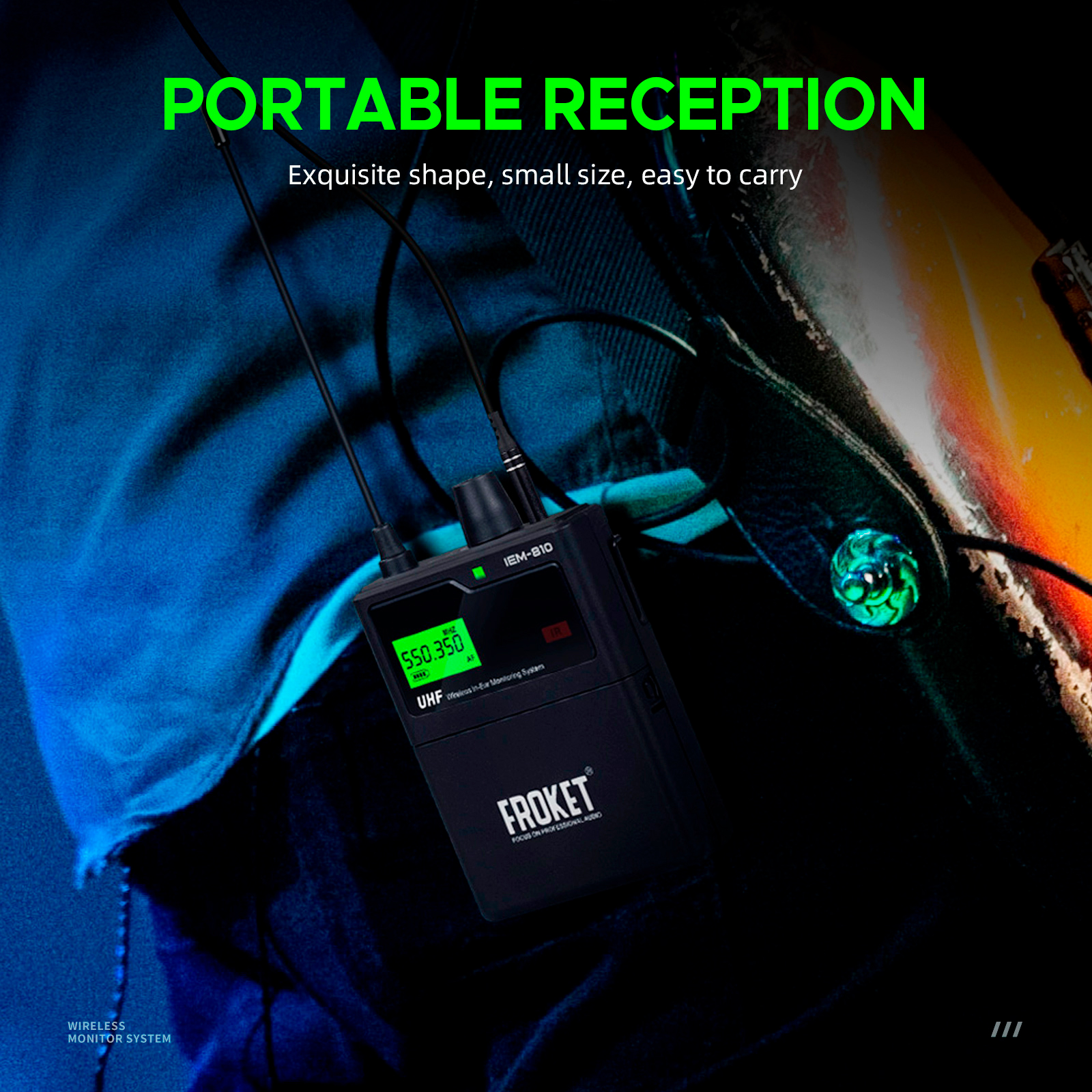

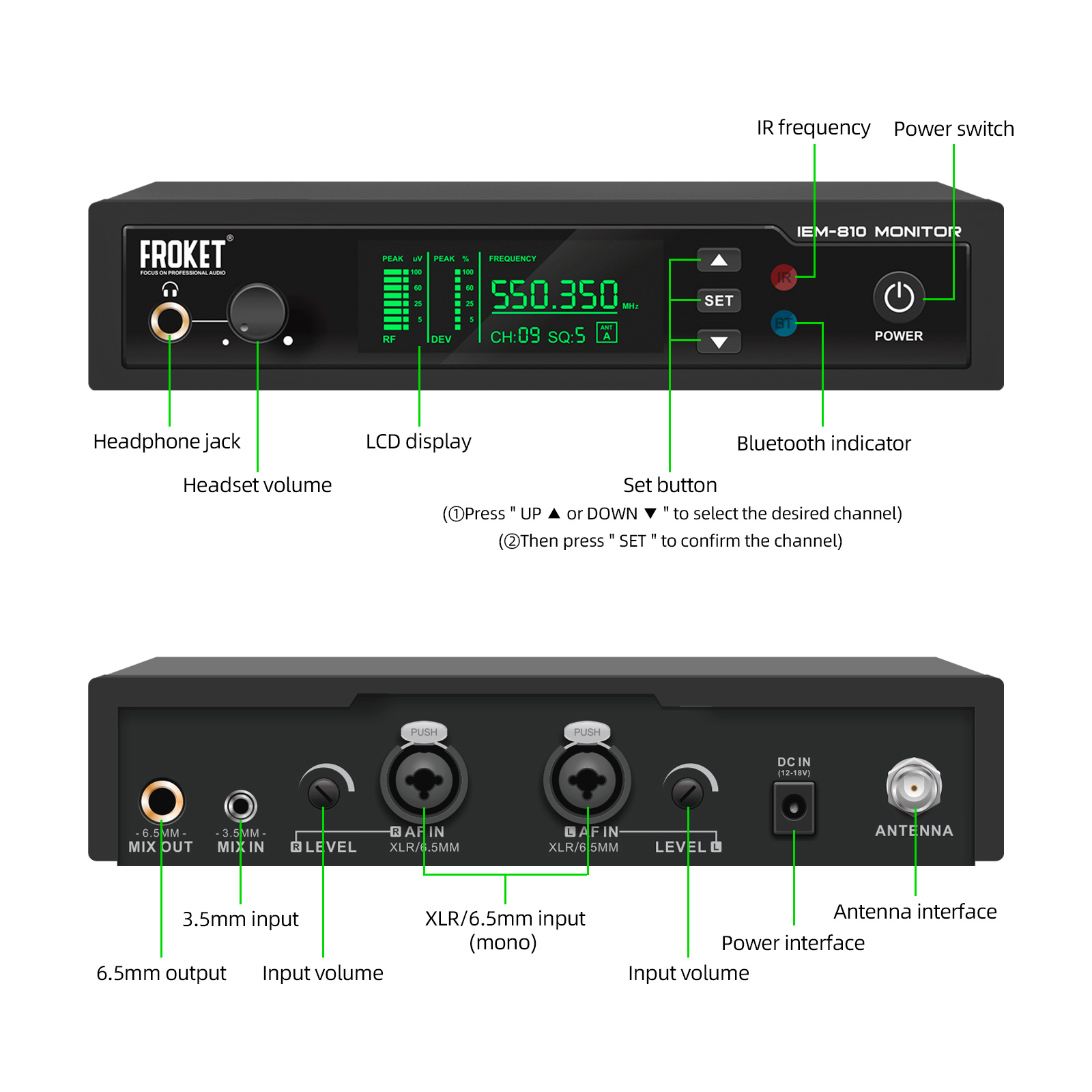

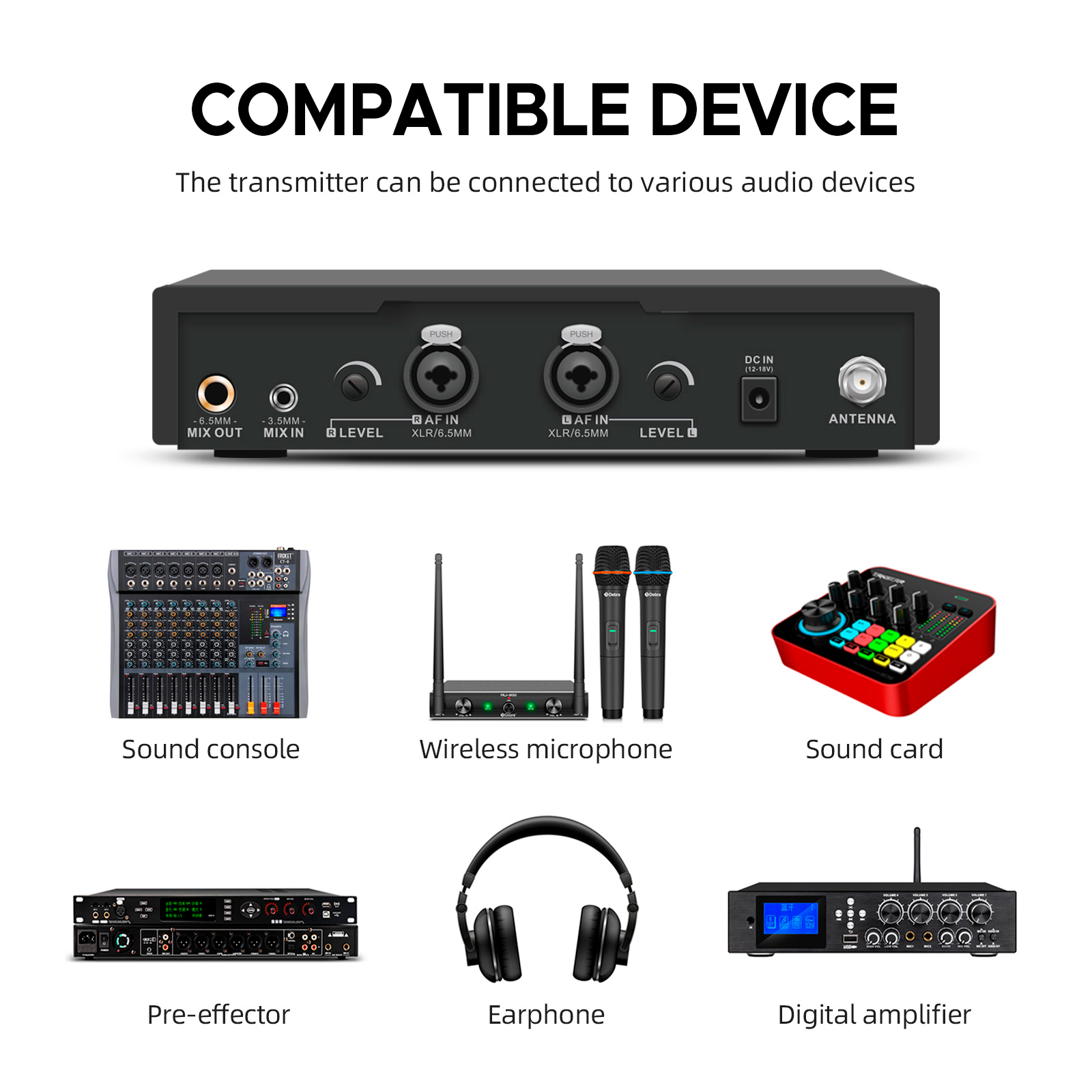

  • SUITABLE FOR MANY PLACES: The transmitter is made of metal casing and the bodypack receiver is equipped with a clip for easy carrying. The front panel of the transmitter has a 6.35mm headphone jack and volume control knob. The rear panel has two XLR/6.5mm mono audio inputs and separate volume controls, as well as a 3.5mm mixed input and 6.5mm mixed output. Good used in stage, broadcast, recording studio, musicians, band performance.

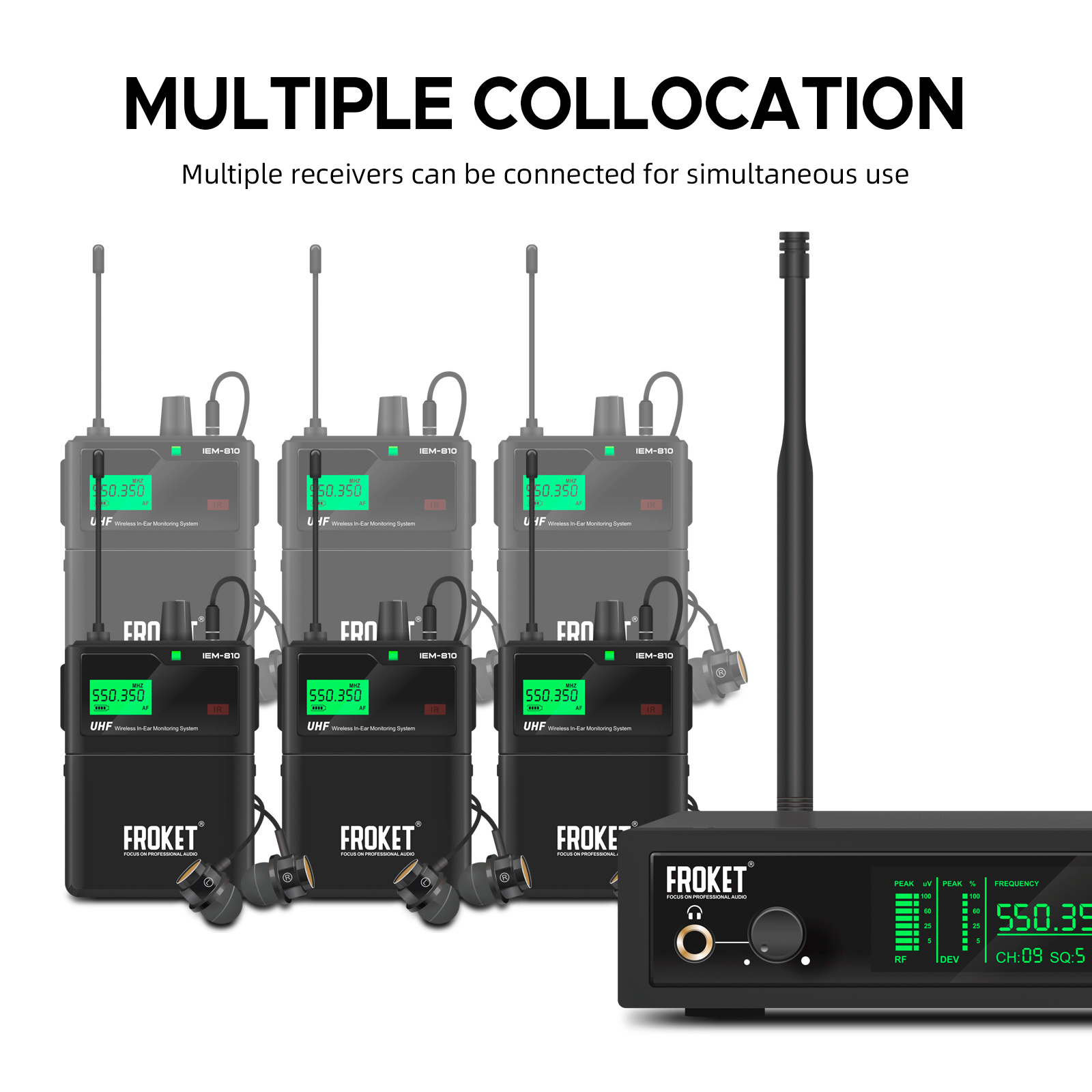

  • EXTENSIBLE MONITOR SYSTEM: This in-ear monitoring system has powerful compatibility features. One transmitter can be connected to multiple receivers with no limit on the number, allowing for simultaneous monitoring scenarios for multiple people. It can meet your needs for multiple applications. And the receiver is compatible with high-fidelity in-ear headphones, which allows you to get clear sound quality and better noise isolation.

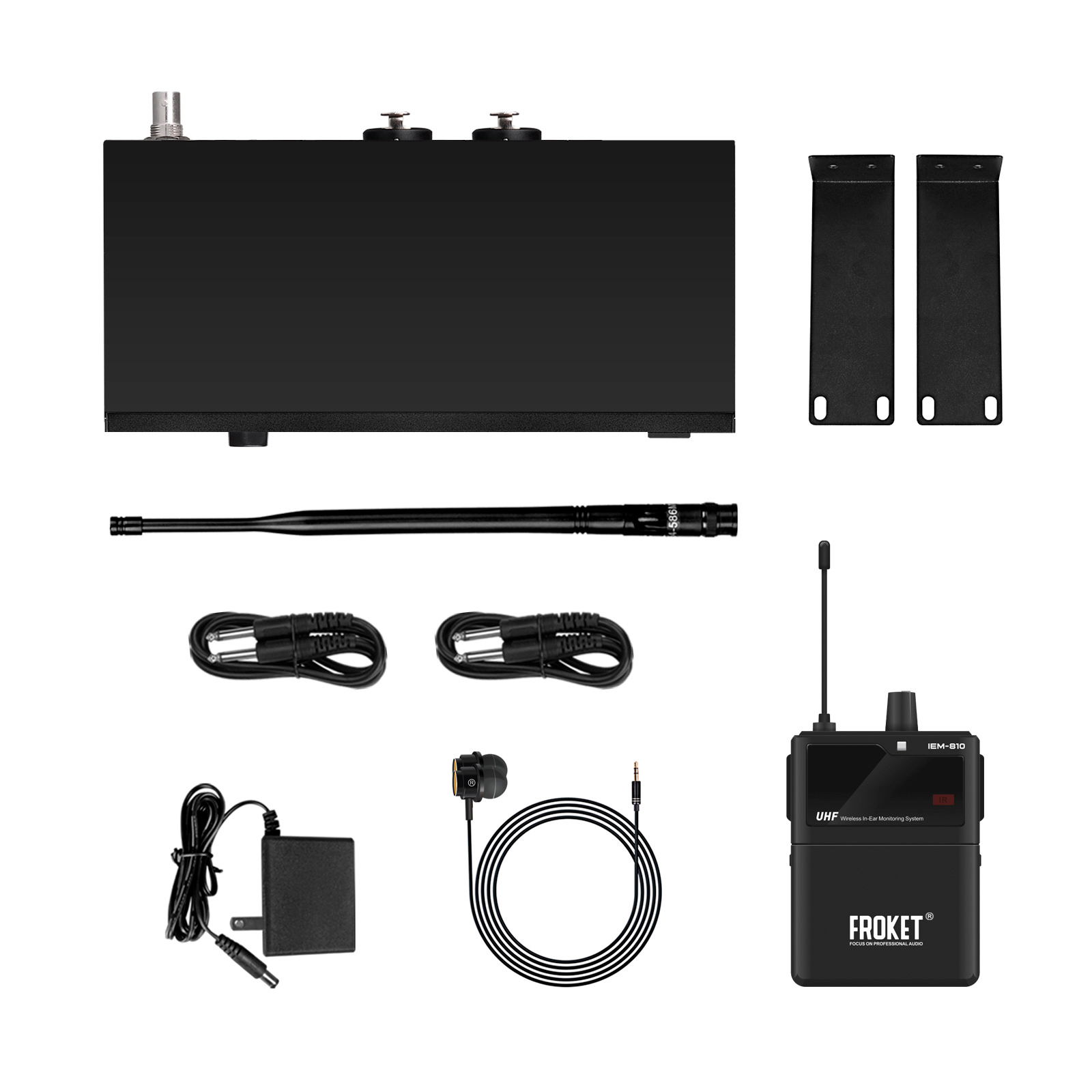

  • PACKING LIST: Transmitter*1, bodypack receiver*2, earphones*2, antenna*1, 6.35 mm audio cable*2, power supply*1, corner code*2, manual*1. If you have any questions, feel free to contact us.
