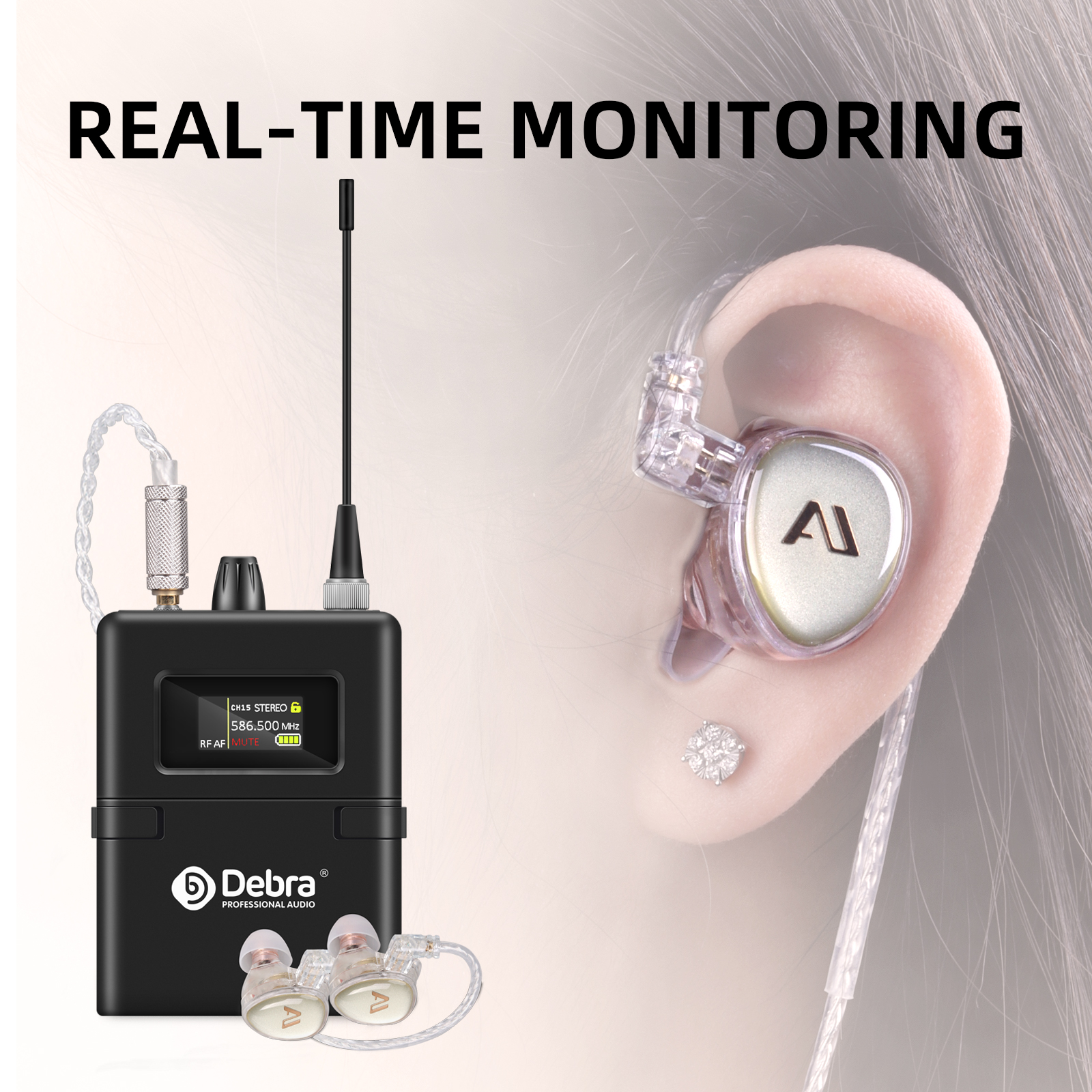

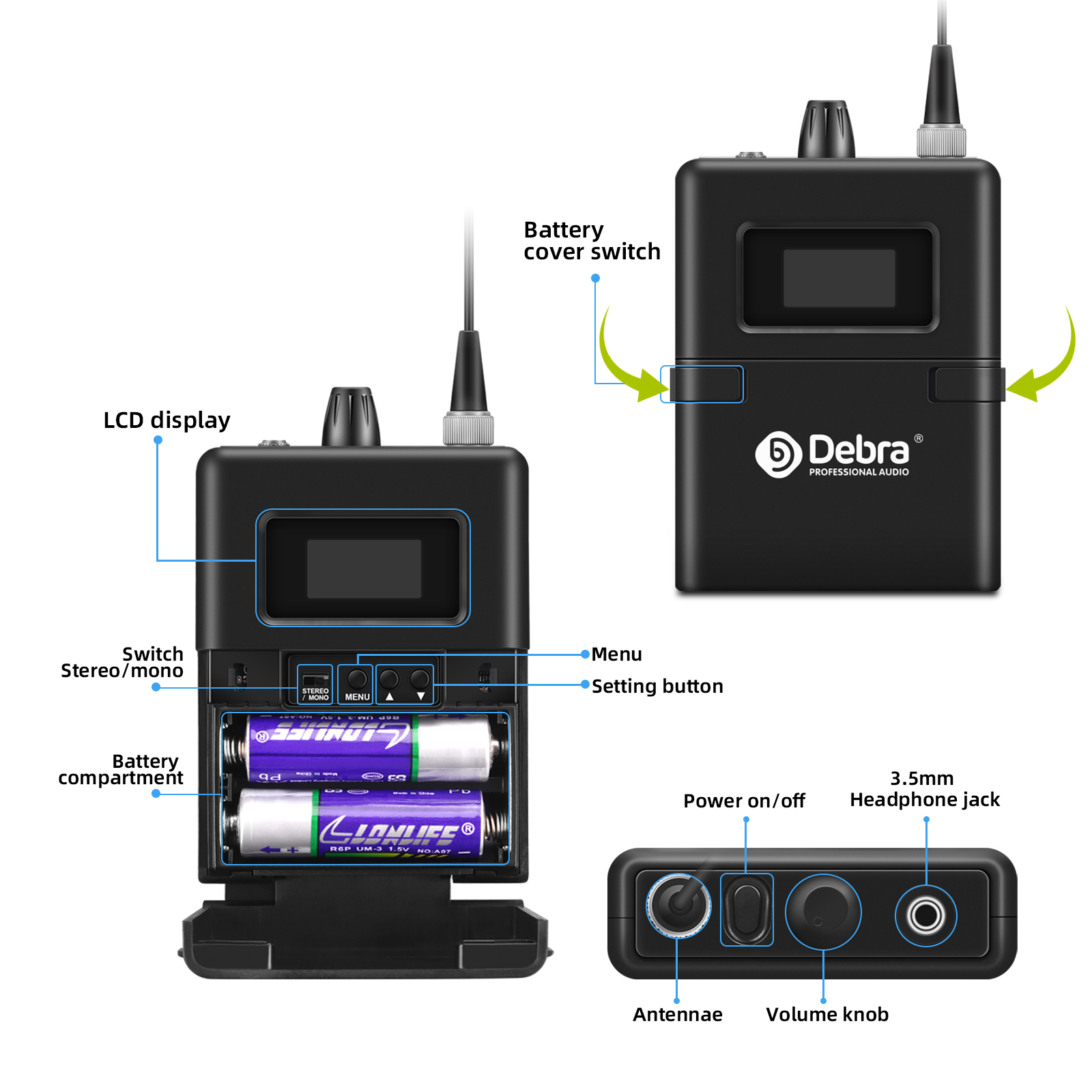

Wireless personal monitoring system with unparalleled sound quality, stable RF performance and leading setting functions in its class, meeting the requirements of most demanding professional monitoring applications. High-frequency wireless listening transmitter, high-quality listening. Adopting exquisite circuit technology, all-round no-dead-angle reception, making the received signal more stable, you can operate and switch the preset 10 groups of frequencies. Excellent and reliable technology, help your performance more outstanding and successful. SW-1 is a wireless stereo waistpack receiver used with the monitoring system, with 24-bit digital audio performance, clear sound quality, and an effective operating range of 80 meters. SW-1 can achieve reliable wireless free performance, covering every corner of the stage.
Specification
Video
FAQ
Download

SW-1 展示+连接视频-封面.jpg


MAIN FUNCTION

●Reliable 24-bit digital audio processing creates an excellent personal monitor mix for every performance.

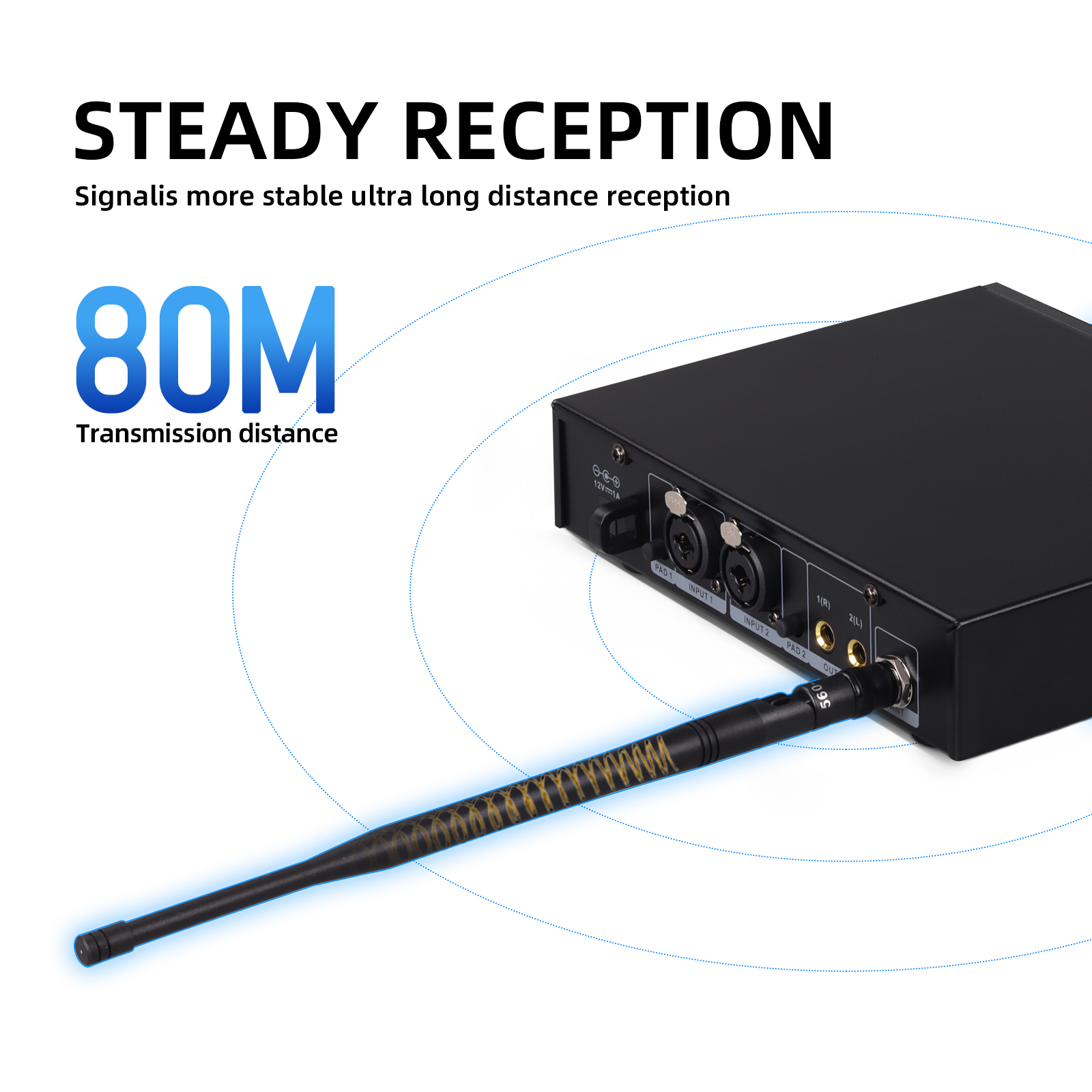

●One audio channel is sent to the beltpack receiver up to 80 meters away, and digital audio technology reliably ensures clear sound quality without noise or signal loss.

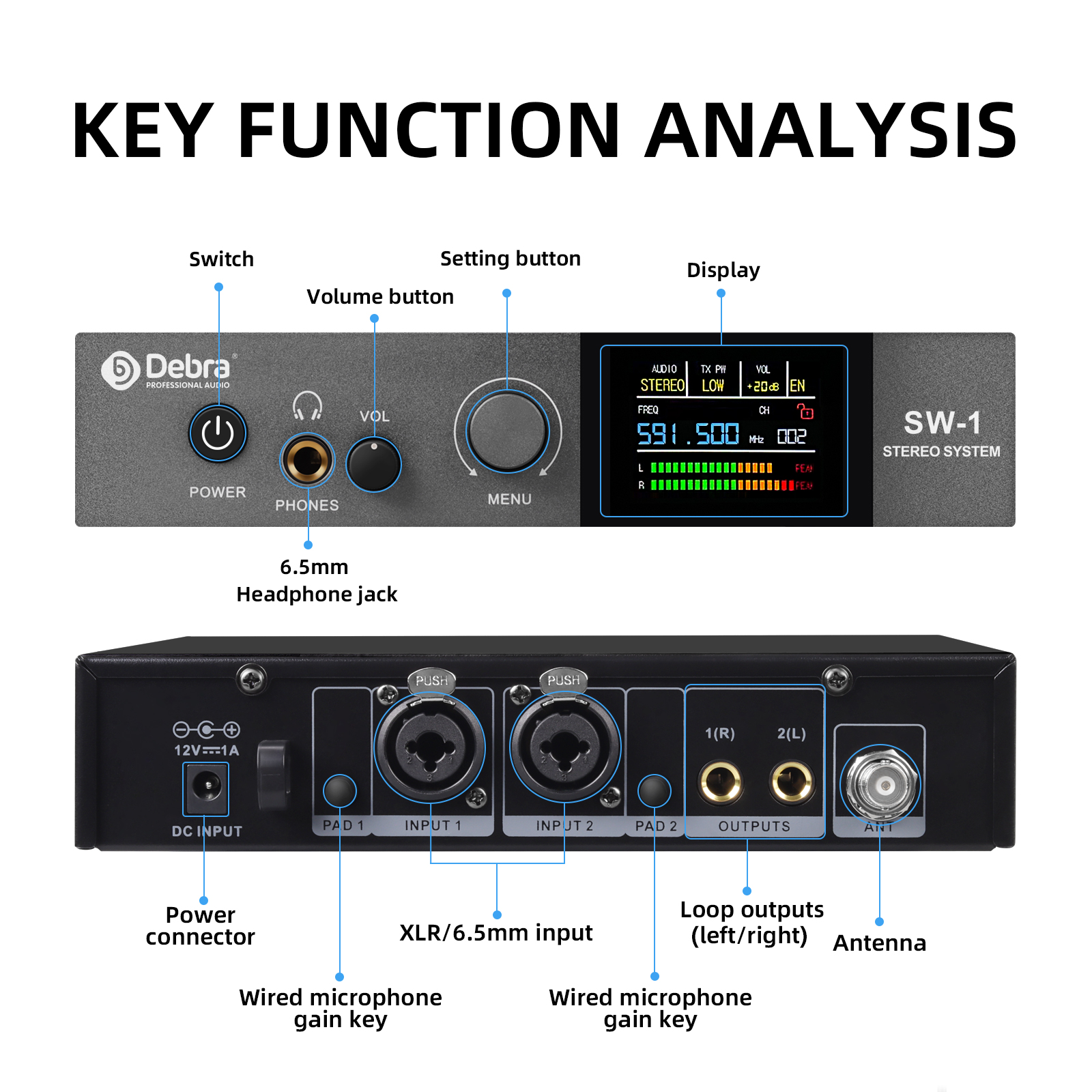

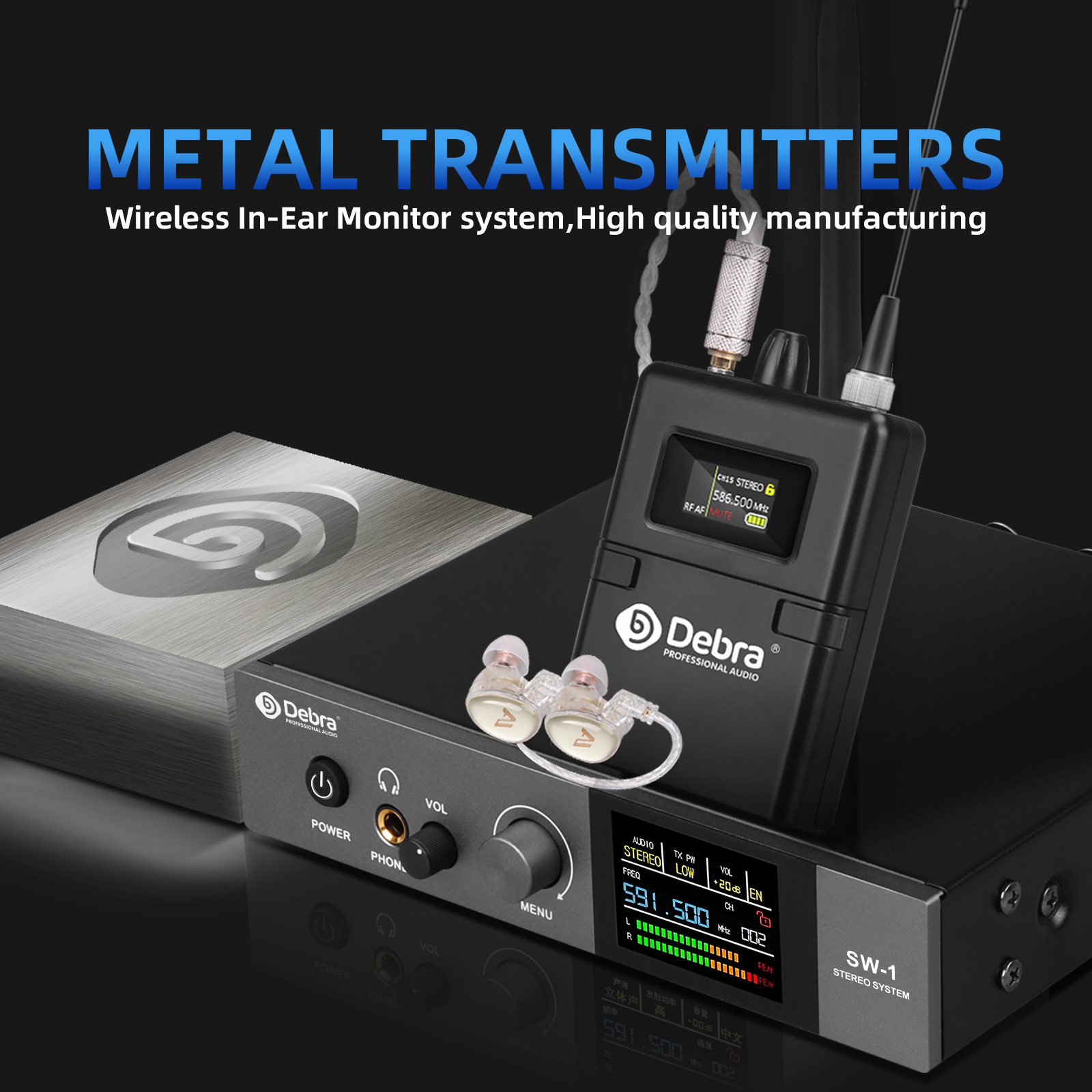

●Rugged half-rack transmitter with simple front panel controls.

●Full-color TFT display with wide viewing angle and high clarity, all working status at a glance

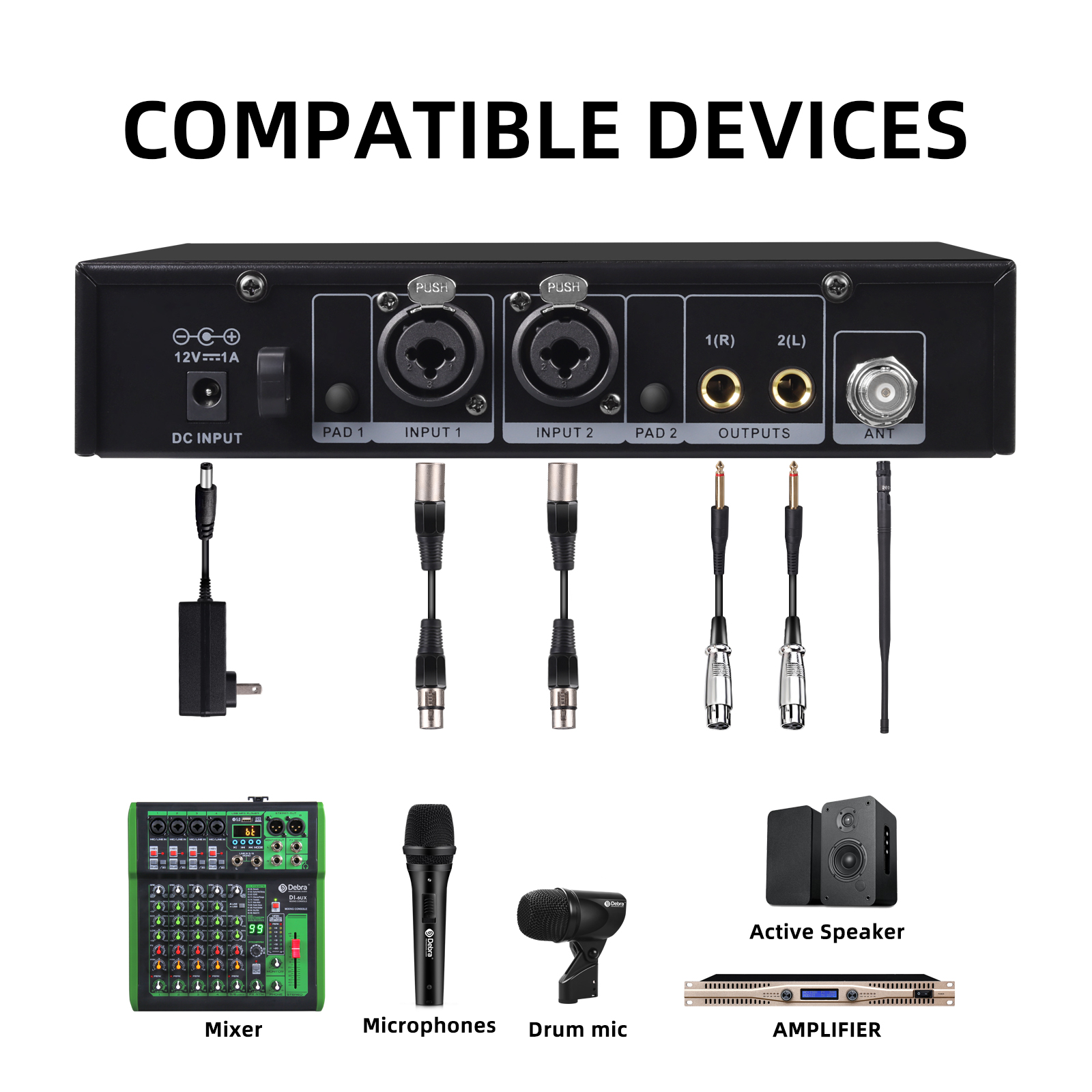

●Rear panel balanced input and loop output provide full connection for audio sources and other devices.

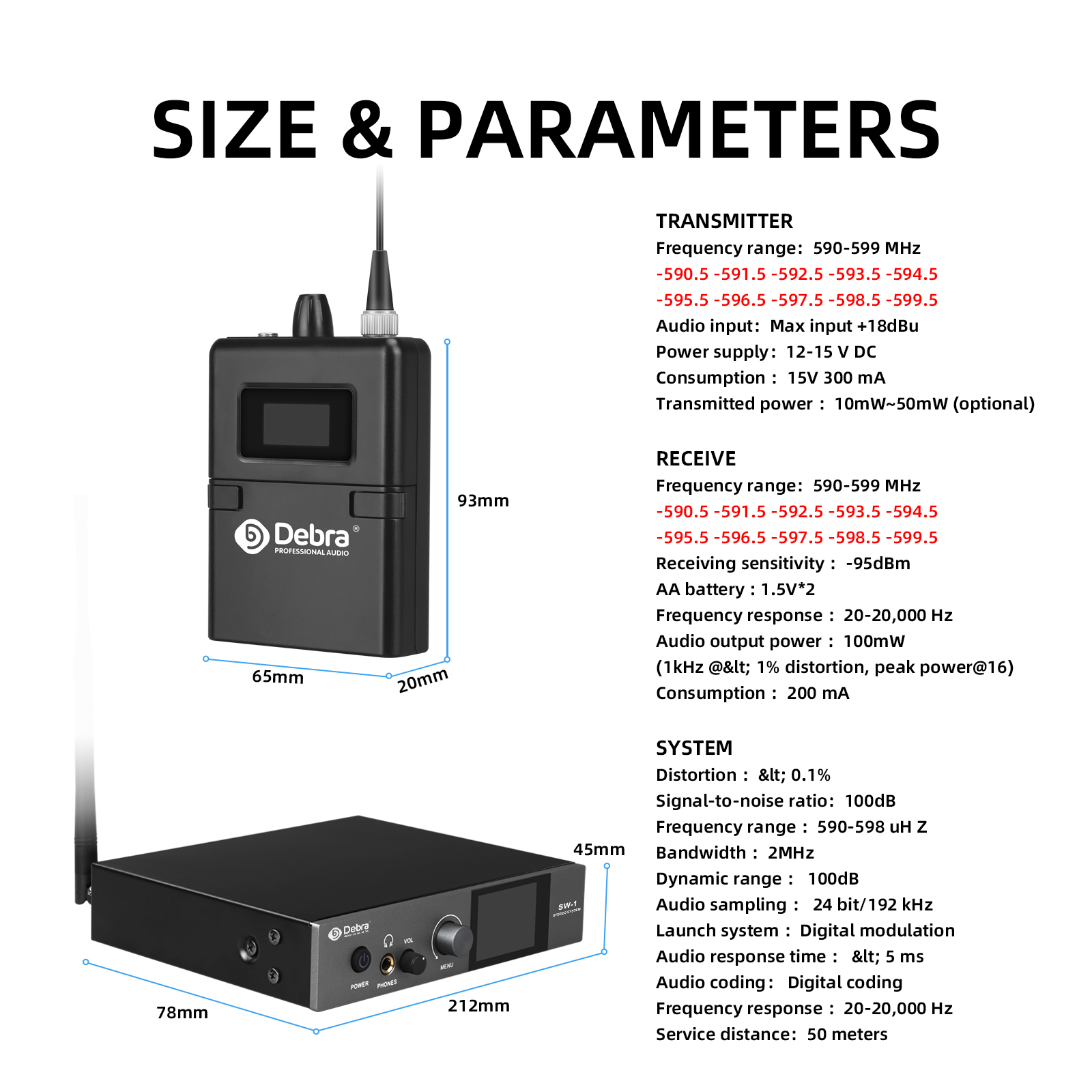

Transmitter

Frequency range..............590.5-599.5 MHz(customizable)

Audio input..................Max input +18dBu

Power supply.................12-15 VDC

Consumption................15V 300 mA

Transmitted power.........10mW~50mW (optional)


Receive

Frequency range..........590.5-599.5 MHz (customizable)

Receiving sensitivity.......-95dBm

The battery ................Lithium battery 4.2V

Frequency response.........20-20,000 Hz

Audio output power ........ 200mw

Consumption..............200 mA


System

Distortion ....................81t; 0.1%

Signal-to-noise ratio .......100dB

Frequency range...........590.5-599.5 MHz(customizable)

Bandwidth................2MHz

Dynamic range..............100dB

Audio sampling...........24 bit/192 kHz

Launch system.............Digital modulation

Audio response time ...... < 5 ms

Audio coding................Digital coding

Frequency response ....... 20-20,000 Hz

Service distance..............50 meters
