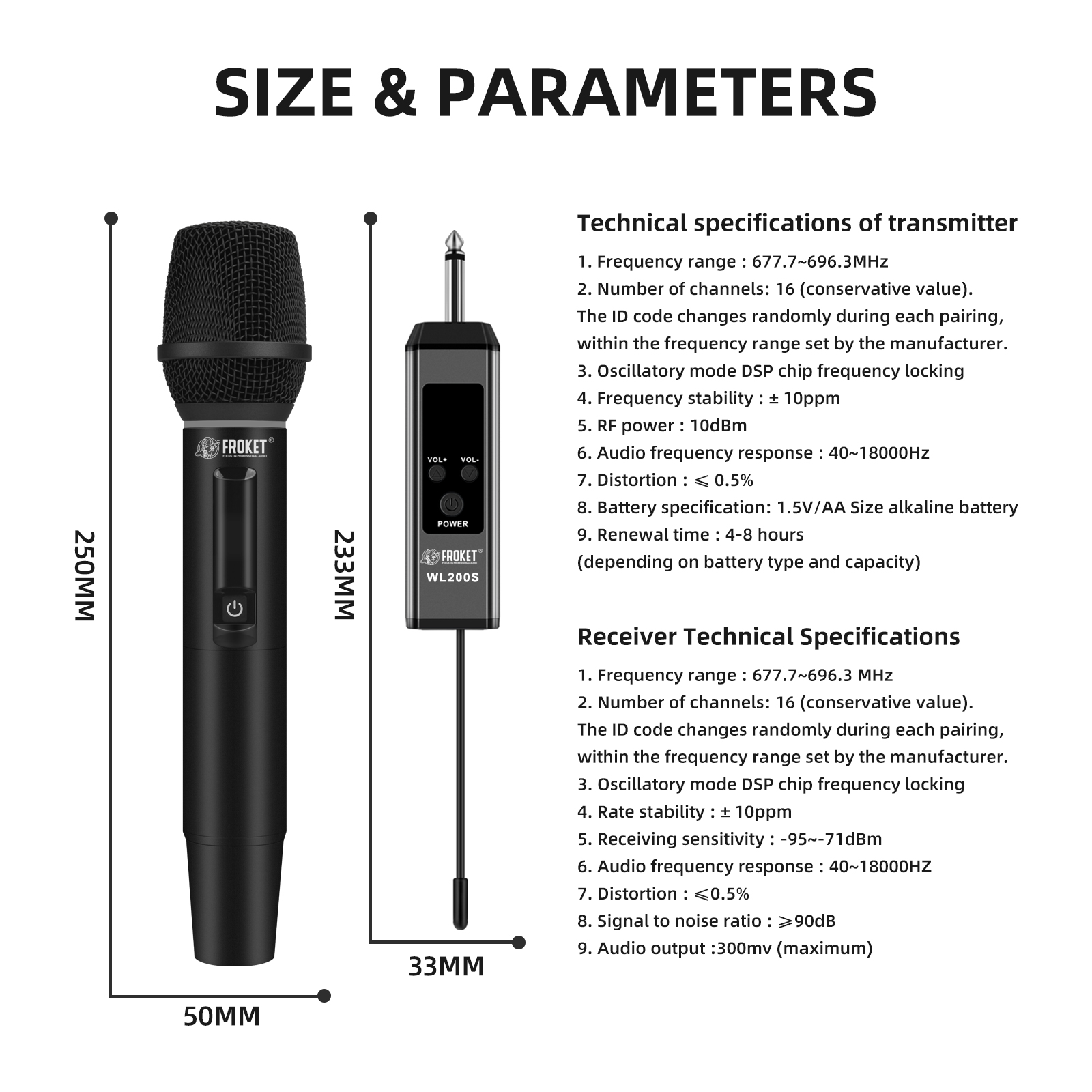

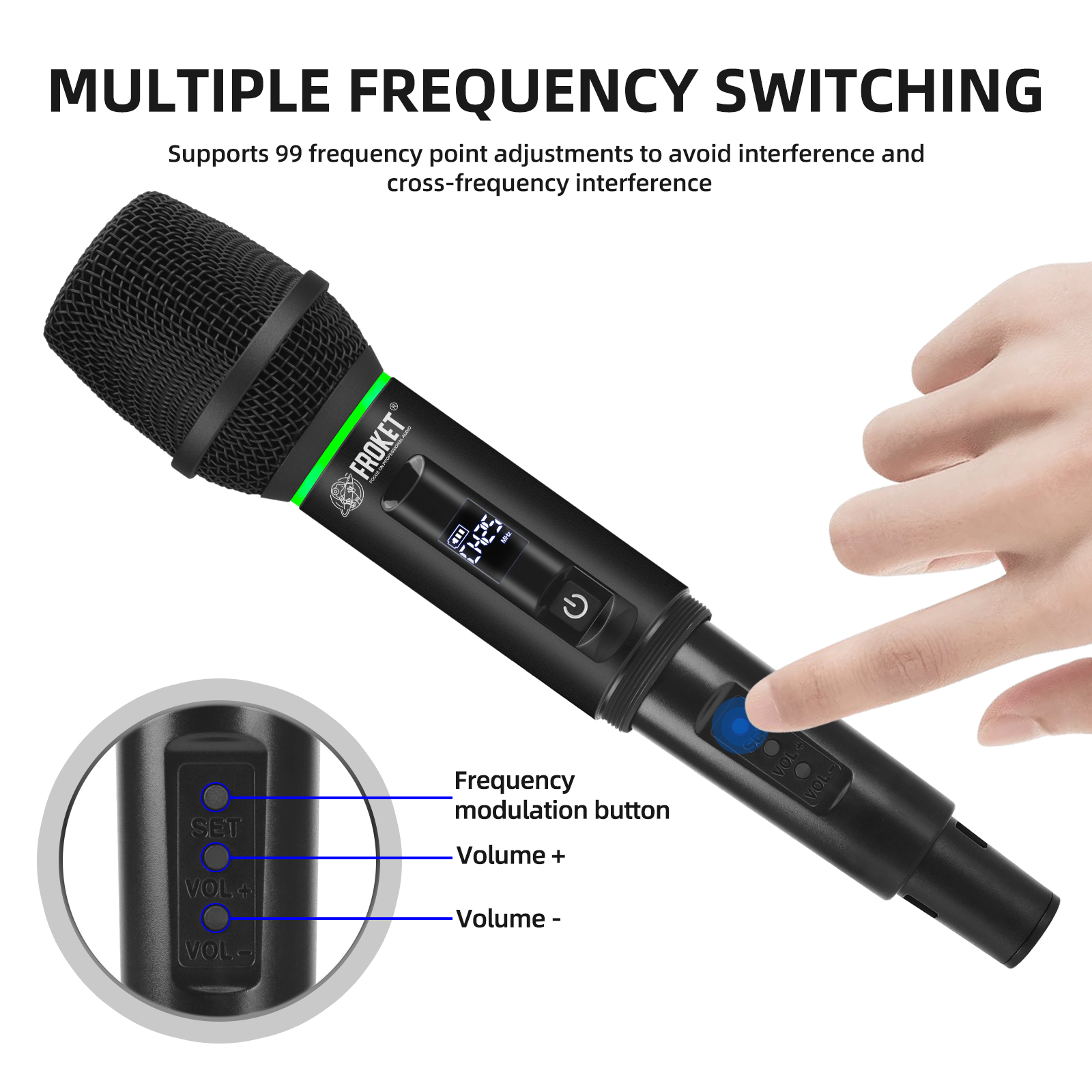

Technical specifications of transmitter
Number of channels:16(conservative value).The liD code changes randomly during each pairing,within the frequency range set by the manufacturer.3.0scillatory mode DSP chip frequency locking
Frequency stability :±10ppm
RF power :10dBm
Audio frequency response :40~18000HZ
Distortion:s0.5%

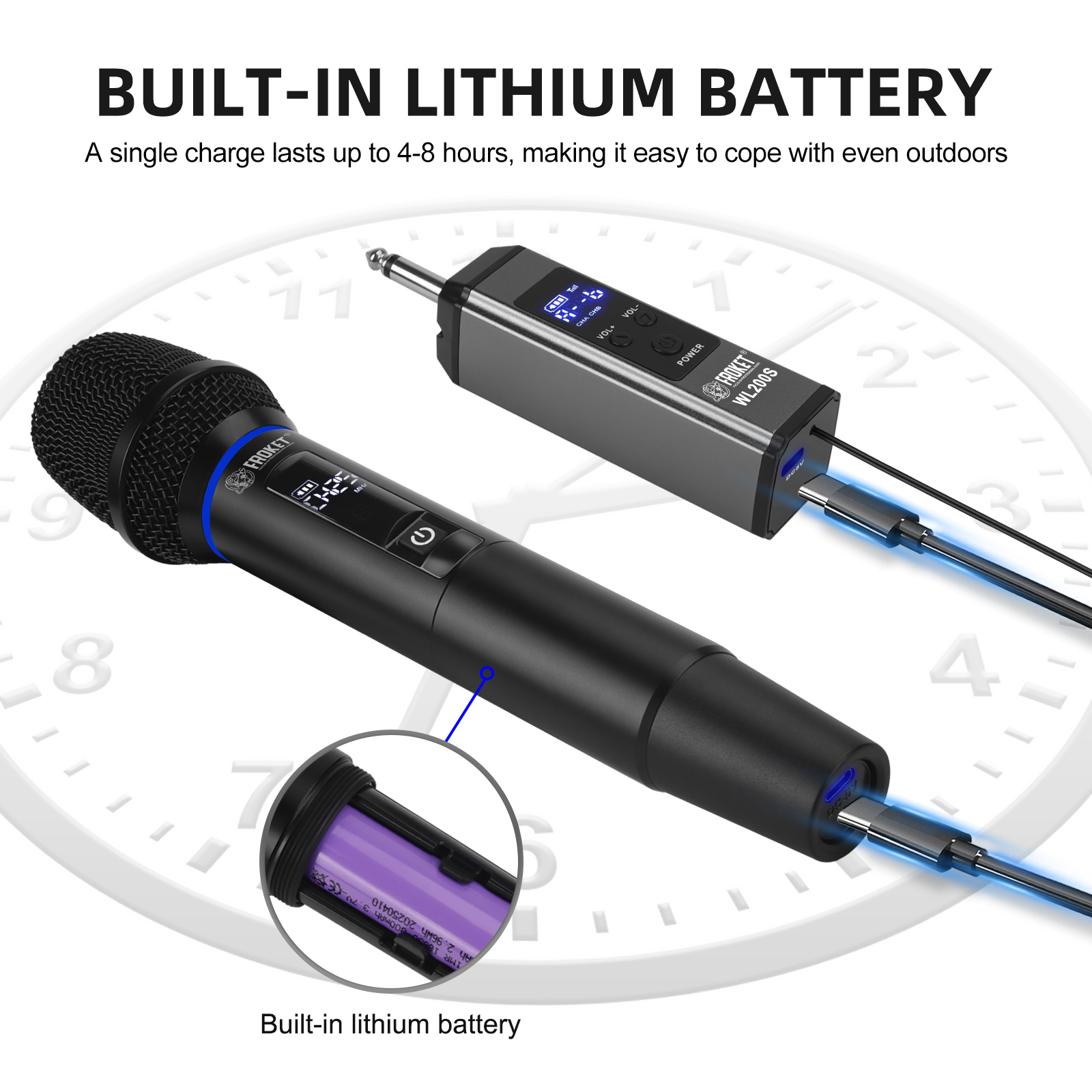

Battery specification: 1.5V/AA Size alkaline battery
Renewal time : 4-8 hours (depending on battery type and capacity)

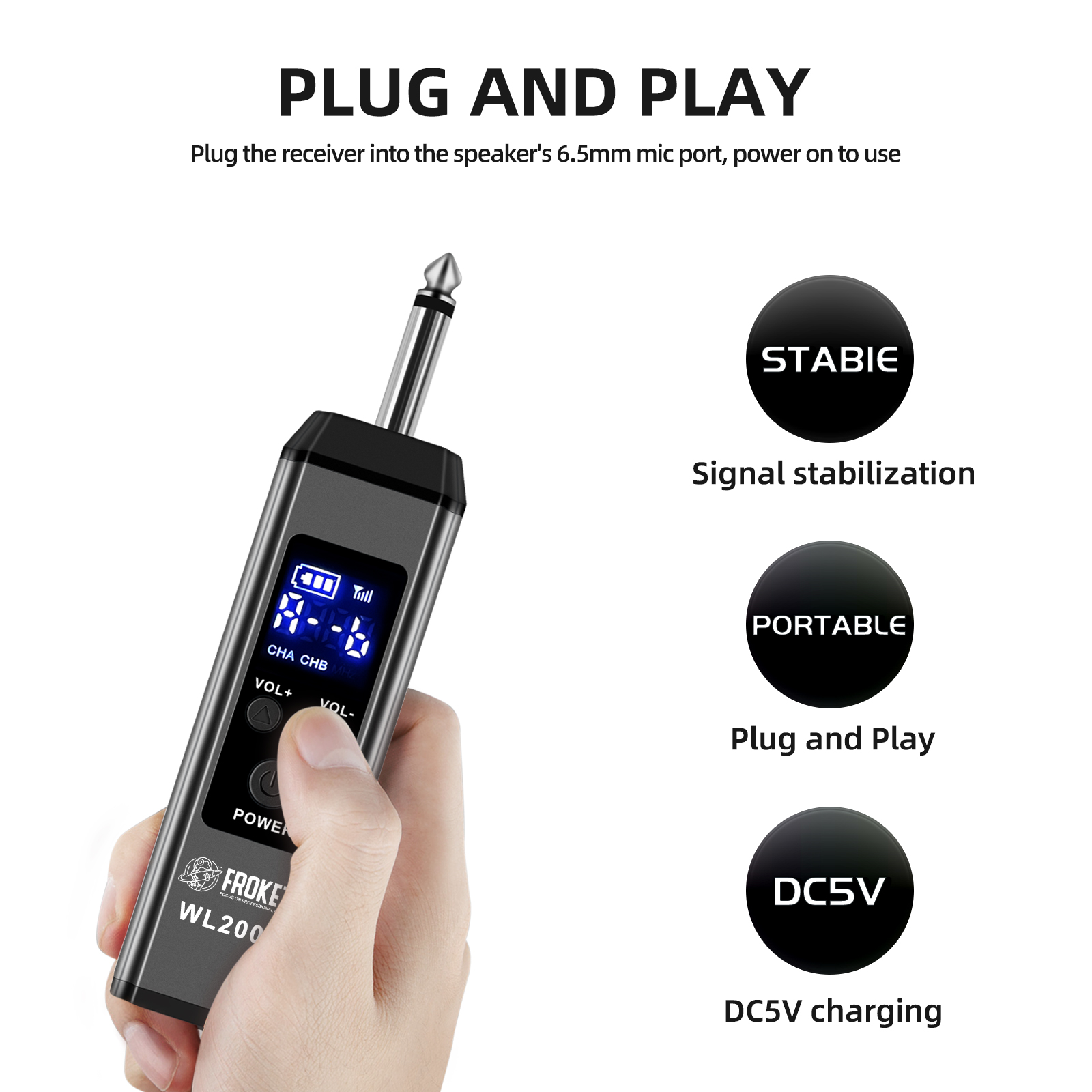

Receiver Technical specifications
Frequency range :677.7~696.3 MHZ
Number of channels: 16(conservative value).The lD code changes randomly during each pairing,within the frequency range set by the manufacturer.
Oscillatory mode DSP chip frequency locking
Rate stability :± 10ppm
Receiving sensitivity:-95~-71dBm
Audio frequency response:40~18000HZ
Distortion:≤0.5%
Signal to noise ratio :>90dB
Audiutput :300mv(maximum)
